FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

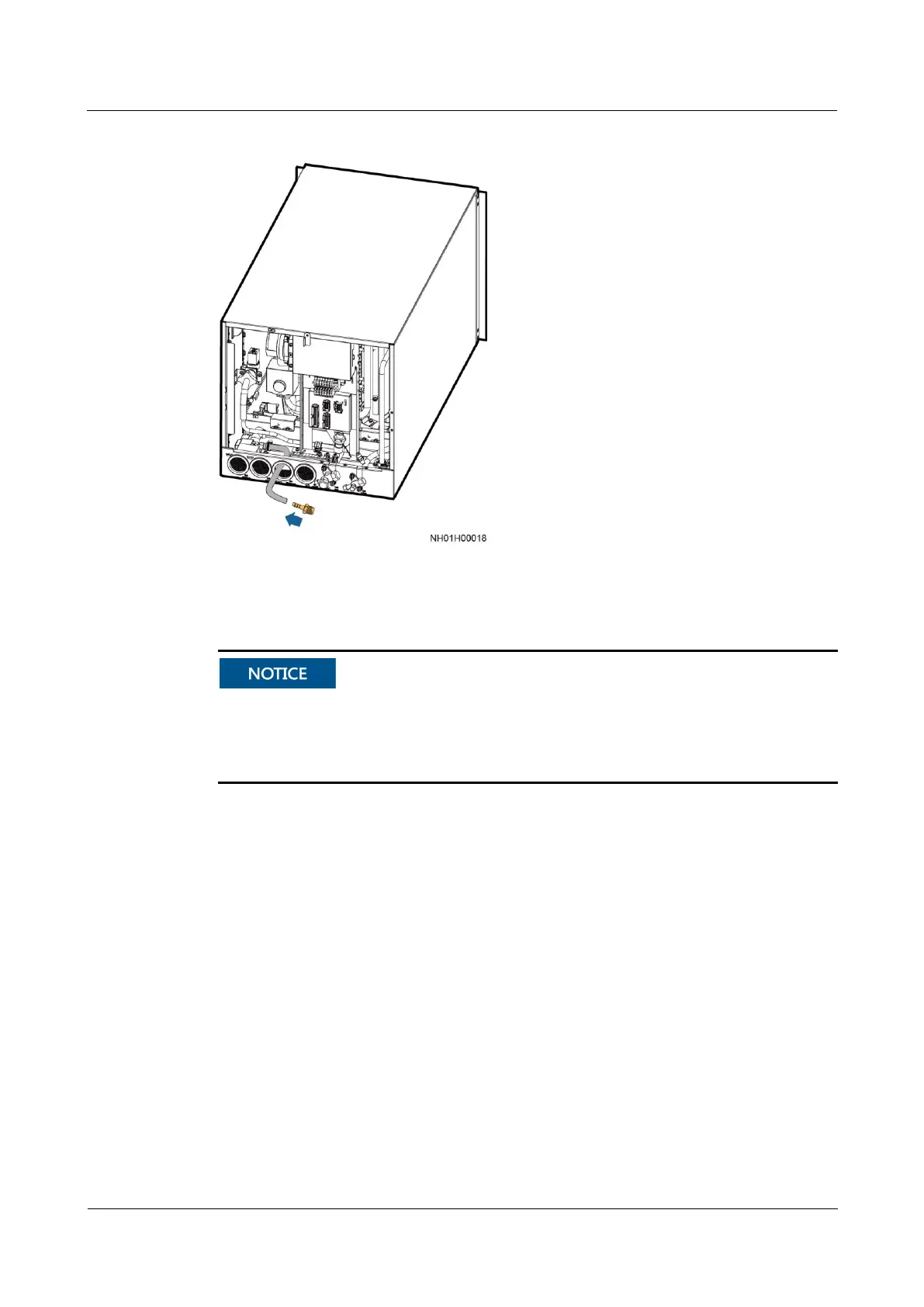

Figure 3-73 Connecting a drainpipe
Step 2 Route the bottom drainpipe.
The smart cooling product fitting bag contains drainpipe connectors. Choose hoses or rigid
pipes based on site requirements.
The drainpipe inside the indoor unit should be wrapped with the thermal insulation pipe in
accessories.
1. Remove the baffle plate for the water pipe hole from the bottom of the cabinet, as shown
in Figure 3-74.
2. Figure 3-75 shows the bottom drainpipe routing.
