FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.
An arrow on the check valve body indicates the flow direction. Ensure that the water flow
direction is consistent with the direction of the arrow when the drainpipe connects to the
check valve.
It is recommended that the check valve be installed in a position lower than the smart
cooling product; otherwise, water leaked from the check valve may affect the running of
the smart cooling product.
After routing pipes, secure them to the pipe component using cable ties.
The drainpipe inside the indoor unit should be wrapped with the thermal insulation pipe in
accessories.

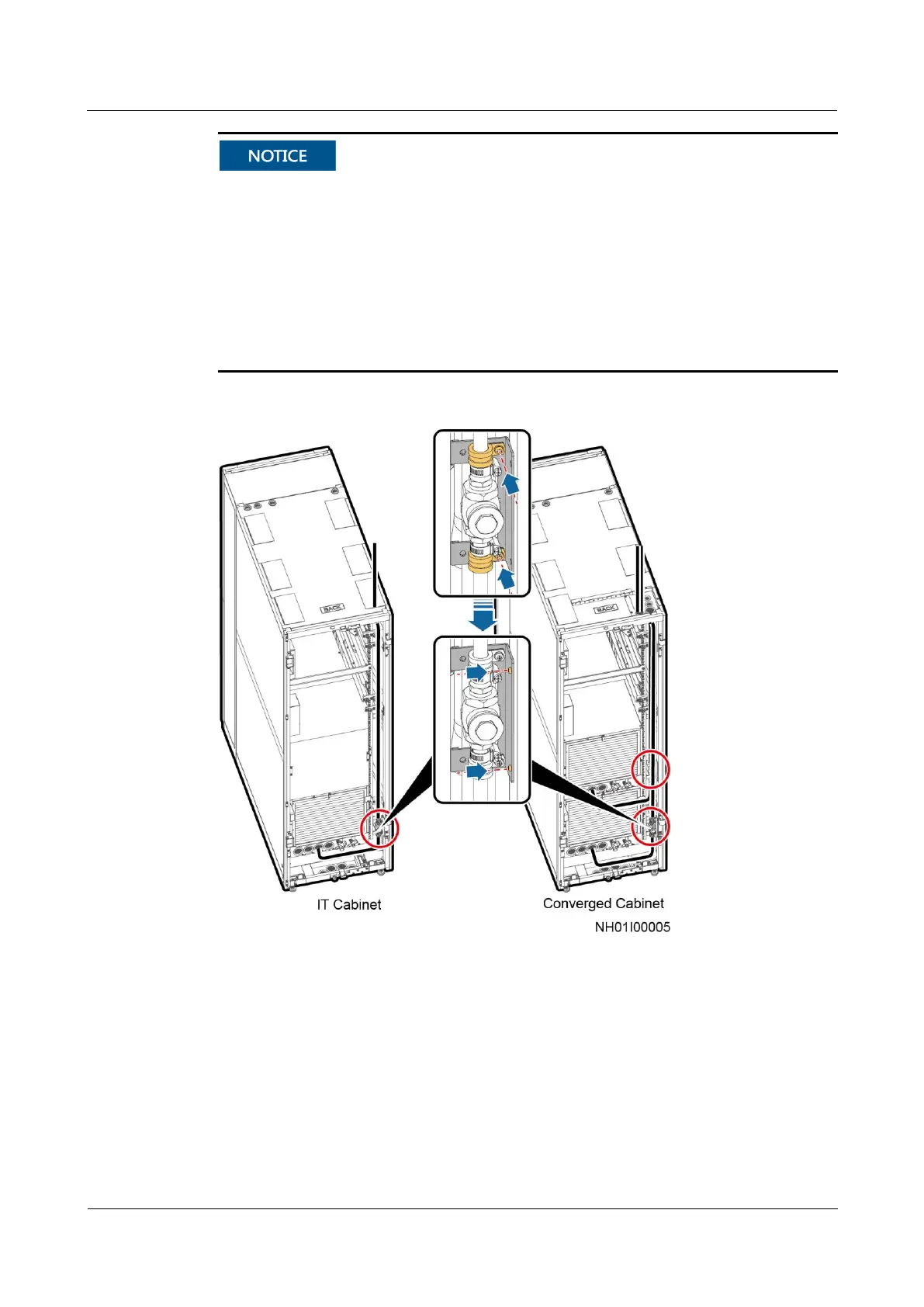

Figure 3-72 Top routing of the drainpipe
----End
Bottom Pipe Routing
Step 1 Take out a drainpipe connector from the fitting bag and put the connector on the other end of
the drainpipe, as shown in Figure 3-73.
