Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
99

For the third smart cooling product, connect all the cables shown in Figure 3-80 except
cable 1 onsite. For the scenario with single smart cooling product or double smart cooling
products, connect cables 3, 4, and 10 only.

After connecting the T/H sensors in the aisle in series, connect them to the RS485 port on
the front panel of the smart cooling product control unit.

Do not pull cables J1, J2, J3, and J4 and their terminals casually. Ensure that the cables are
connected securely.

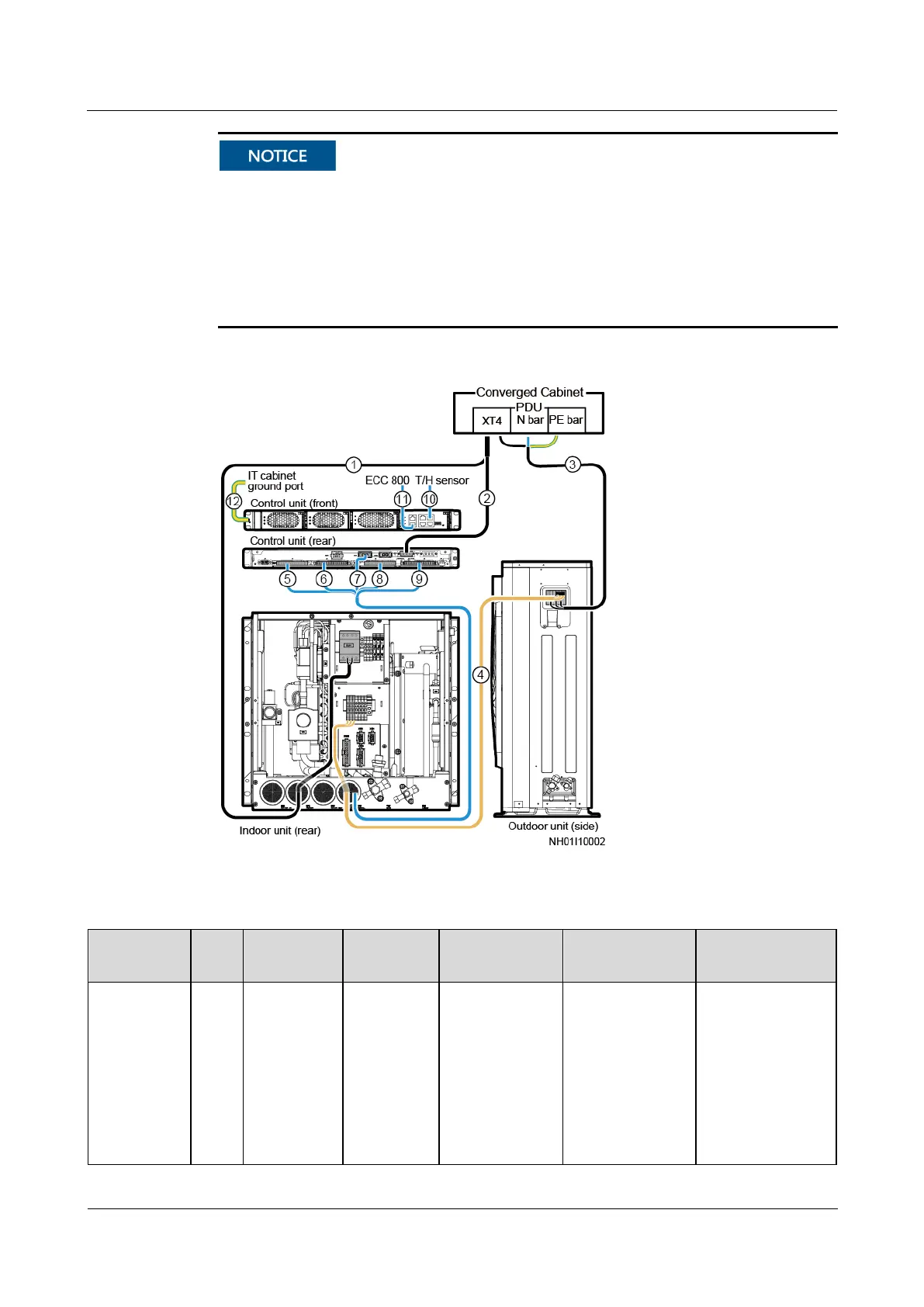

Figure 3-80 Cable connections to the smart cooling product
Table 3-5 Cable connection description
Applicable
Scenario
No.
Cable
Name
From
To
Cable
Specifications
Remarks
Third smart
cooling
product
1
Electric
heater
contactor
(required if
an electric
heater is
configured)
N/A
N/A
N/A
There is no need
to connect this
cable because the
third smart
cooling product is
not configured
with such cable by
default.
Route cables from
