FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

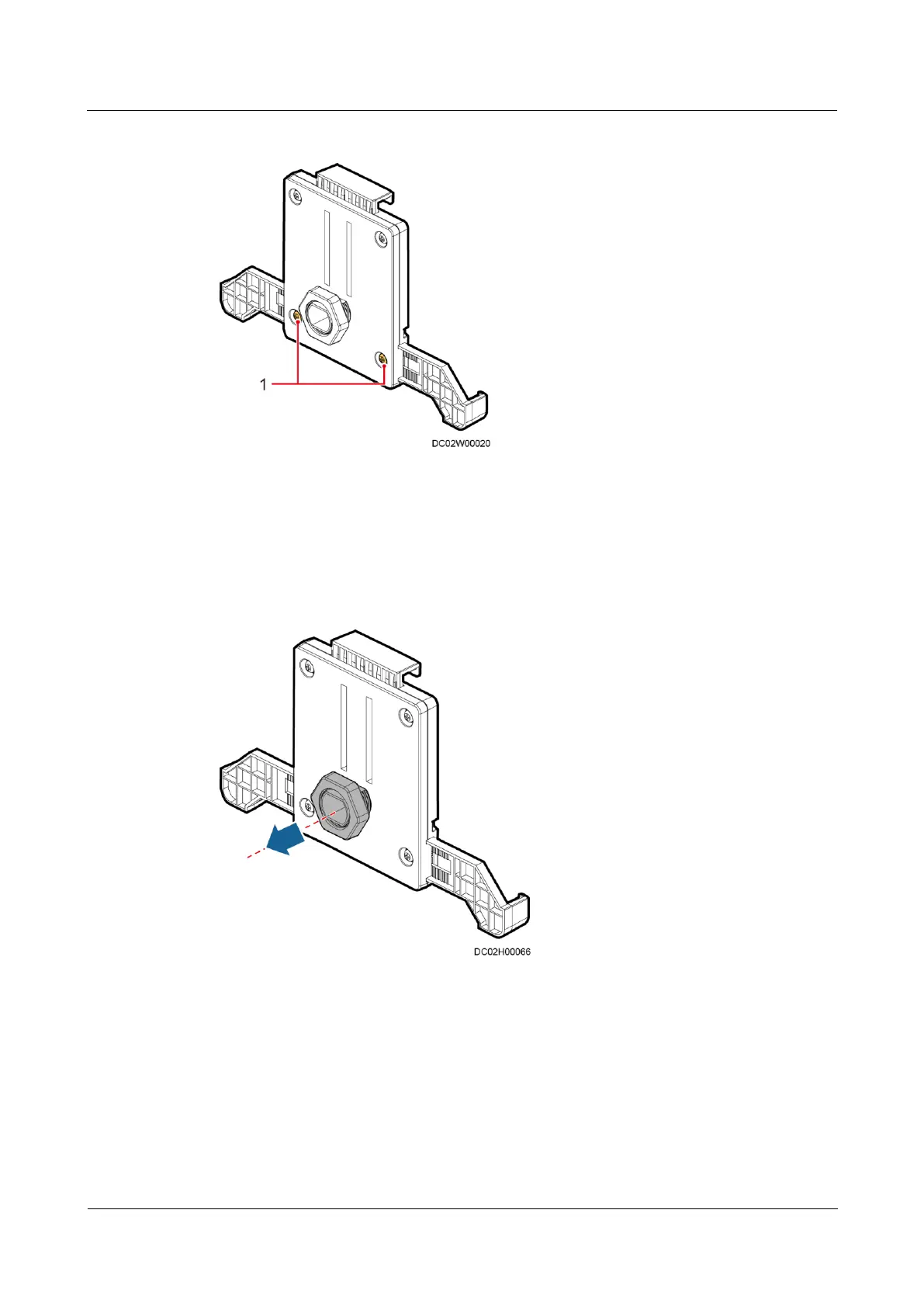

Figure 3-112 Adjustment screws
Step 2 Remove nuts from the PAD support, insert the support into the mounting holes on the cabinet
front door, and reinstall the nuts to secure the support to the front door.
Figure 3-113 Removing the nut
Step 3 Route the PAD power cable to the cable hole in the PAD support and connect the cable to the
PAD.
Step 4 Adjust the feet above the PAD support and clamp the PAD to the PAD support.
To Next Page
