Context
The PAD is installed on the door of the Converged Cabinet, as shown in Figure 3-111.

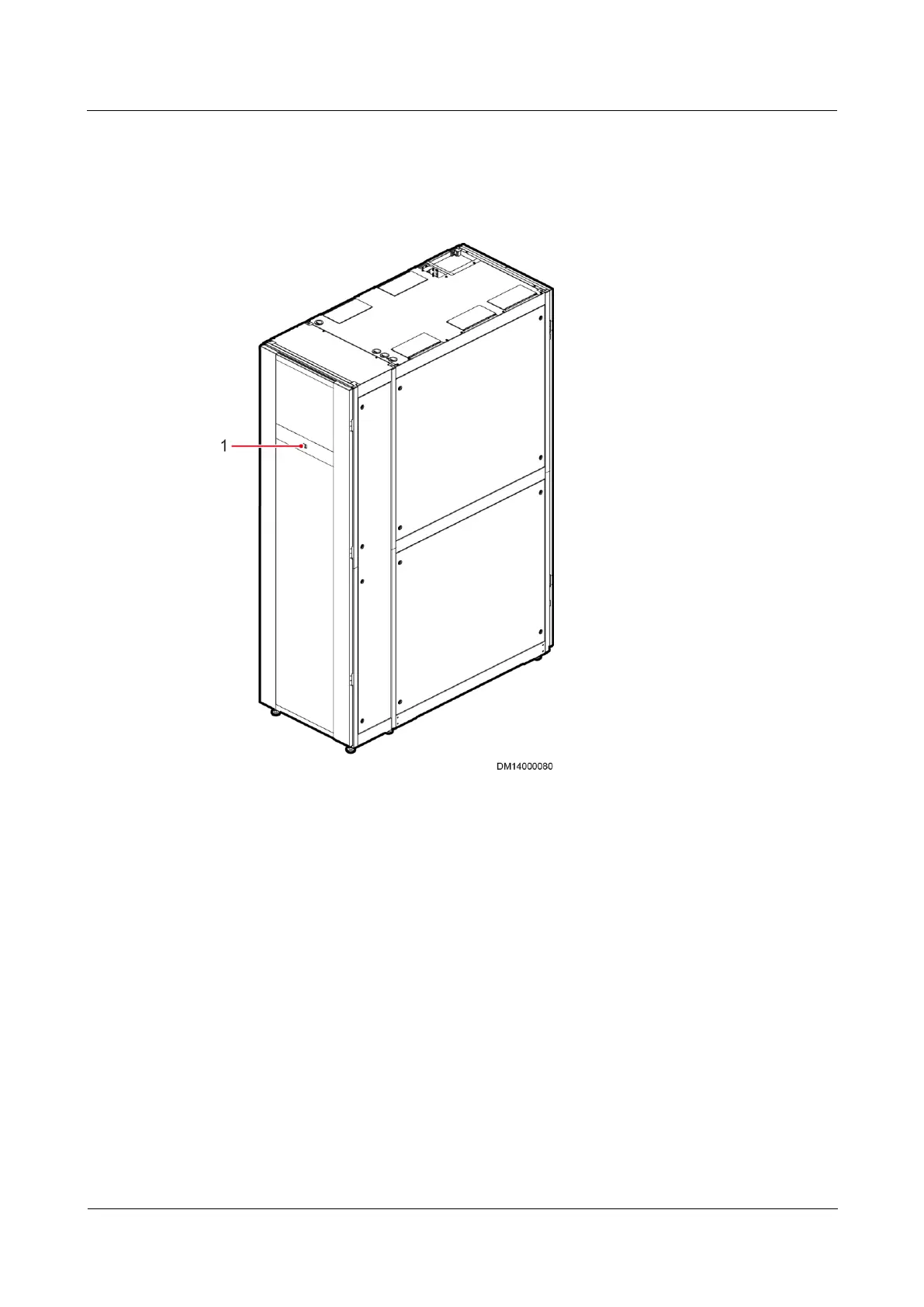

Figure 3-111 PAD installation position
(1) PAD installation position
Procedure
Step 1 Adjust the width and height of the PAD support to match the dimensions of the PAD to be
installed.
