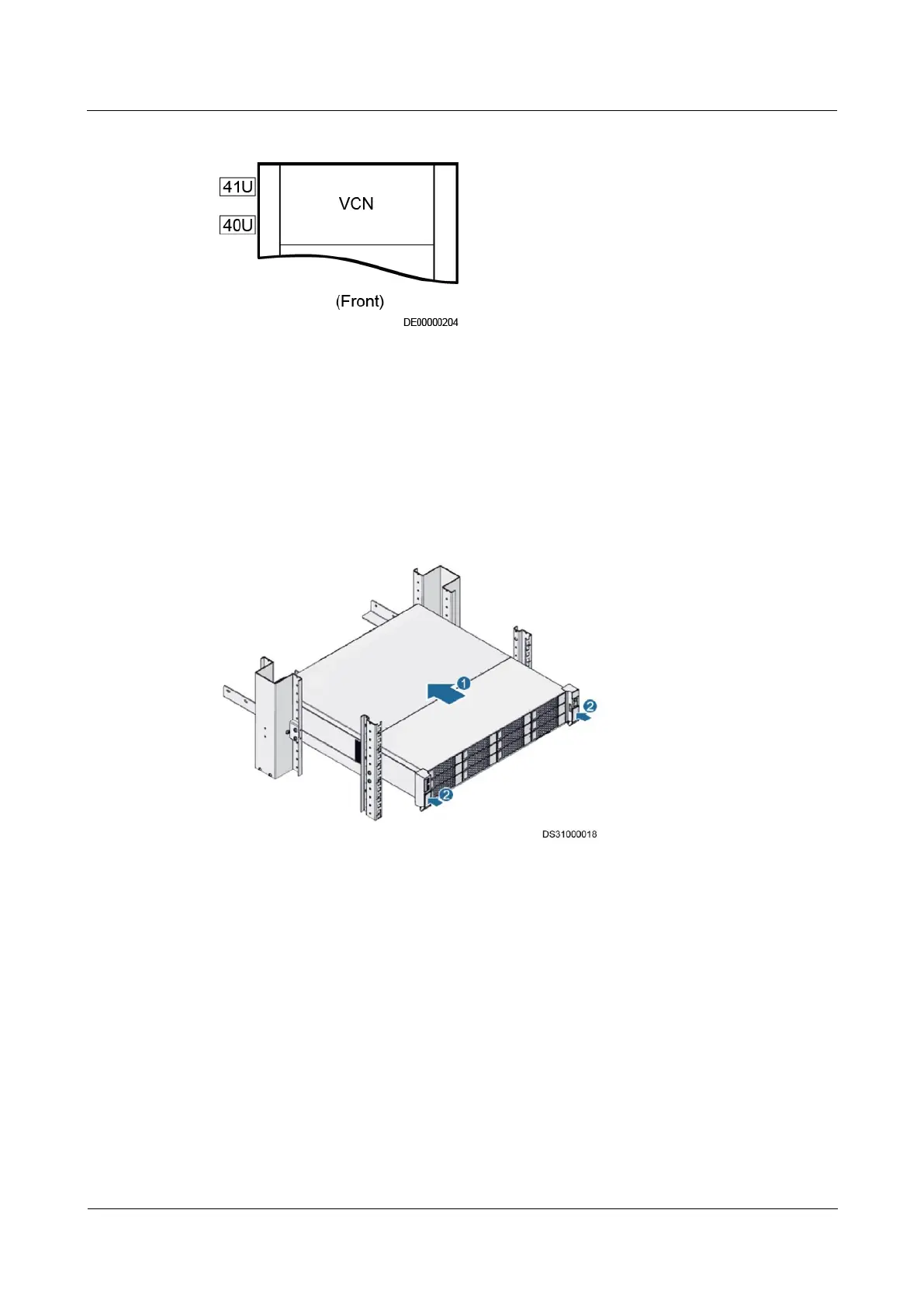

Figure 3-116 VCN500 installation position
Procedure
Step 1 Select VCN500 mounting holes on the IT cabinet, adjust the guide rails or trays, and install
floating nuts.
Step 2 Place the VCN500 with caution into the IT cabinet, and gently press down buttons on the left
and right mounting ears, as shown in Figure 3-117.
Figure 3-117 Placing a VCN500
Step 3 Tighten the captive screws in the ears using a Phillips screwdriver to close the mounting ear
buttons, as shown in Figure 3-118.
