FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Copyright © Huawei Technologies Co., Ltd.
135

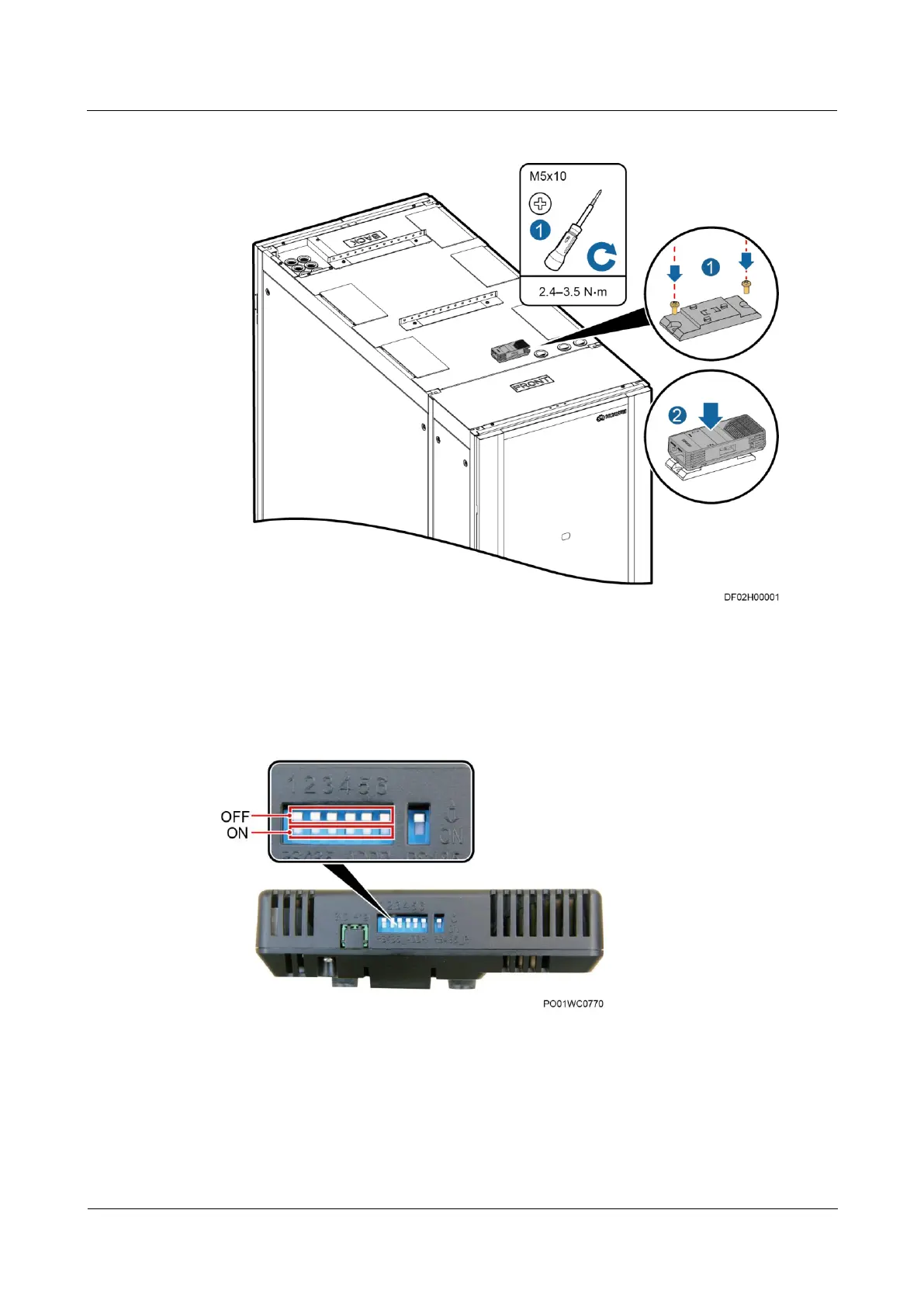

Figure 3-128 Installing a T/H sensor outside an aisle
Step 2 Set DIP switches for the T/H sensors and connect communications cables to them.
Figure 3-129 DIP switch on a T/H sensor
