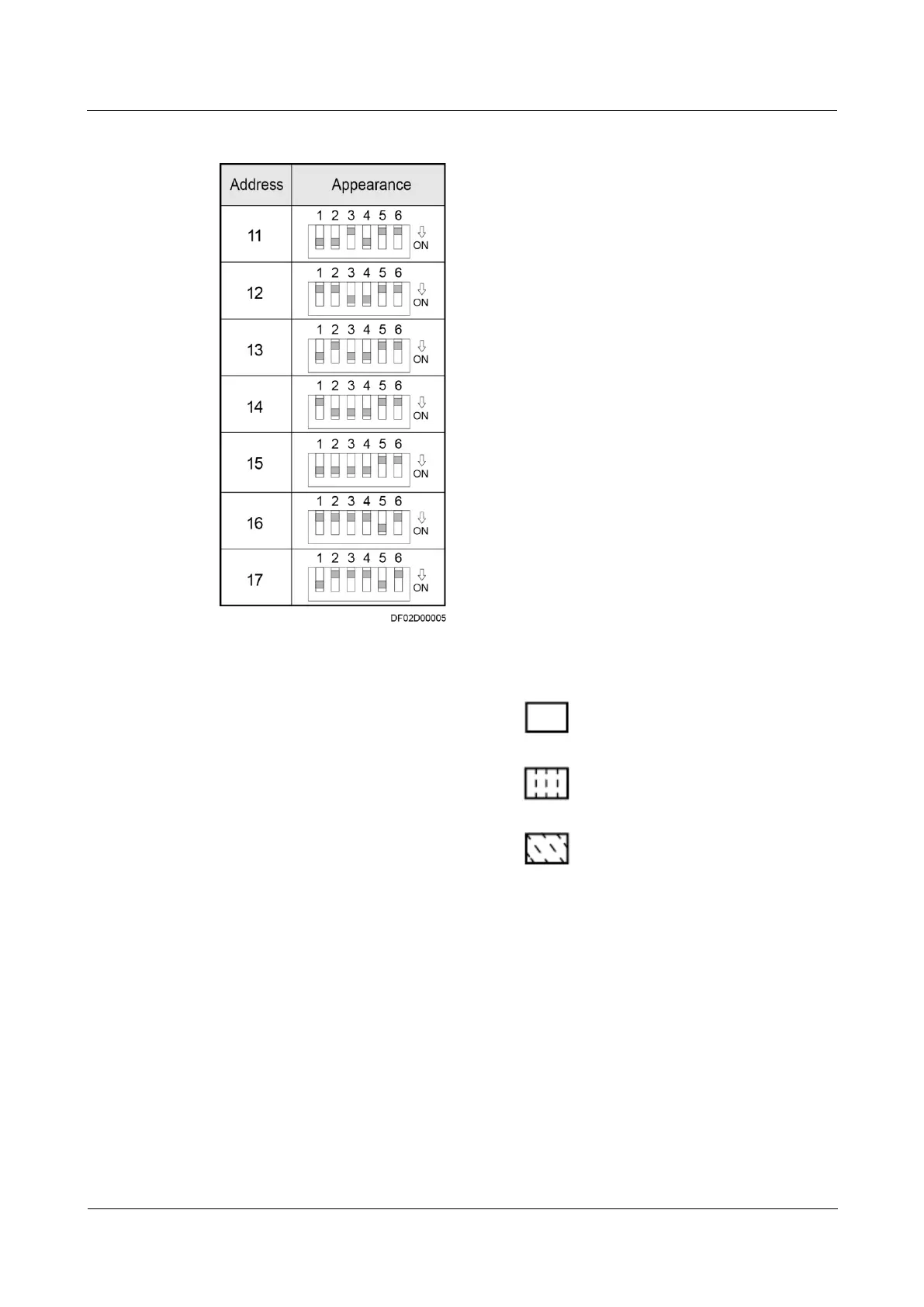

Figure 3-155 Address and DIP switch setting on a T/H sensor
Description about the cable connection to and DIP switch setting on a T/H sensor:

Connect the T/H sensors in the shape of to smart cooling product control unit 1
in series.

Connect the T/H sensors in the shape of to smart cooling product control unit 2
in series.

Connect the T/H sensors in the shape of to smart cooling product control unit 3
in series.

Each of the T/H sensors connected in series has a unique address.
