Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
150

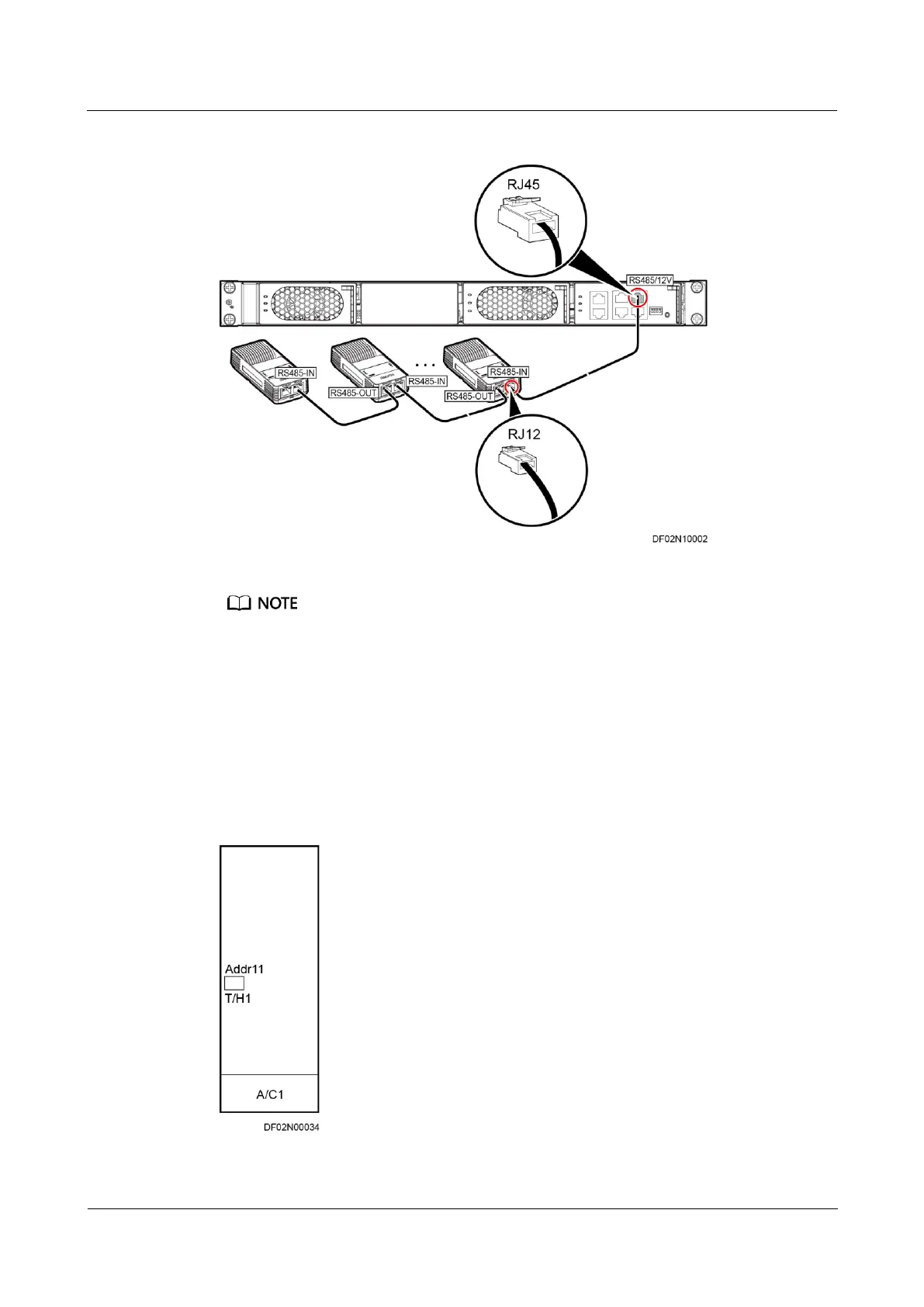

Figure 3-156 Connecting T/H Sensors in Series and Then to the Control Unit

T/H is short for temperature and humidity sensor. A/C is short for smart cooling product. Addr is
short for DIP switch address.

T/H sensors are numbered T/H1-T/Hn from left to right based on their positions in the cabinet aisle.

The smart cooling products in the Converged Cabinet are numbered from bottom to top. The smart
cooling product in the IT cabinet is numbered 3.

The T/H sensors are installed on the left and right rack rails at the front door of the IT cabinet,
battery cabinet, and network cabinet.

The last cable from the T/H sensor to the smart cooling product controller is obtained from the cable
bag numbered 04092766.
Figure 3-157 T/H sensor layout and DIP switch address (1 smart cooling product for 1 cabinet)
