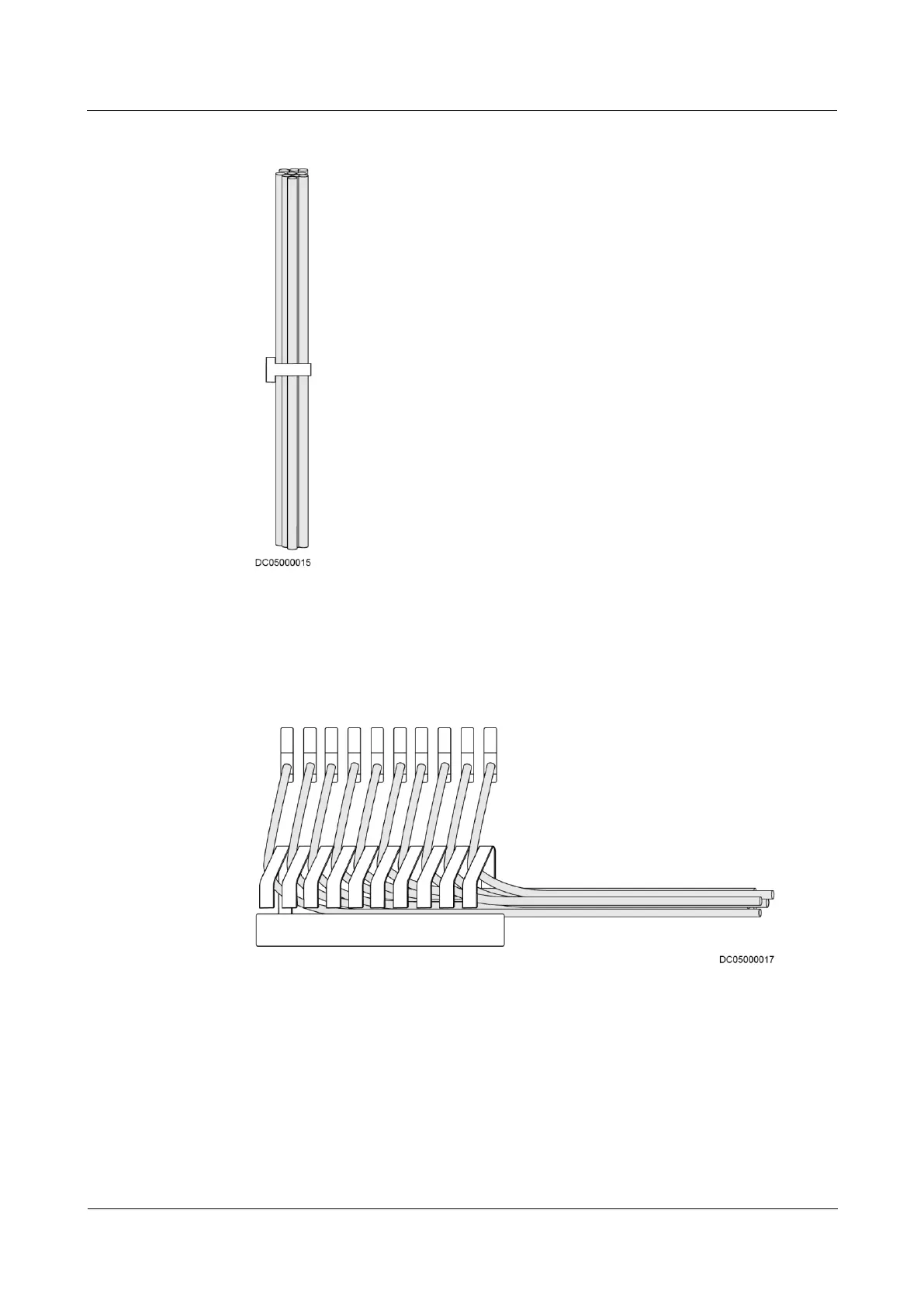

Figure 4-1 Neatly organizing cables
2. Keep a large number of cables neat and appealing in a network cabling cabinet by using
cable organizers. Move the excess parts of cables in unnoticeable positions, as shown in
Figure 4-2.
Figure 4-2 Cable organizer
3. Route and lay out a large number of cables in different areas to ensure neat cabling and
facilitate cable search and maintenance.
4. Route several flat cables along the same path and then overlap them as one.
5. Arrange cables on distinct layers and prevent cable tangles that are avoidable when
cables in different colors are bound together, as shown in Figure 4-3. Also comply with
these rules when cables of different thickness are bound together. Arrange cables by
thickness when arrangement by thickness conflicts with arrangement by color.
