FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

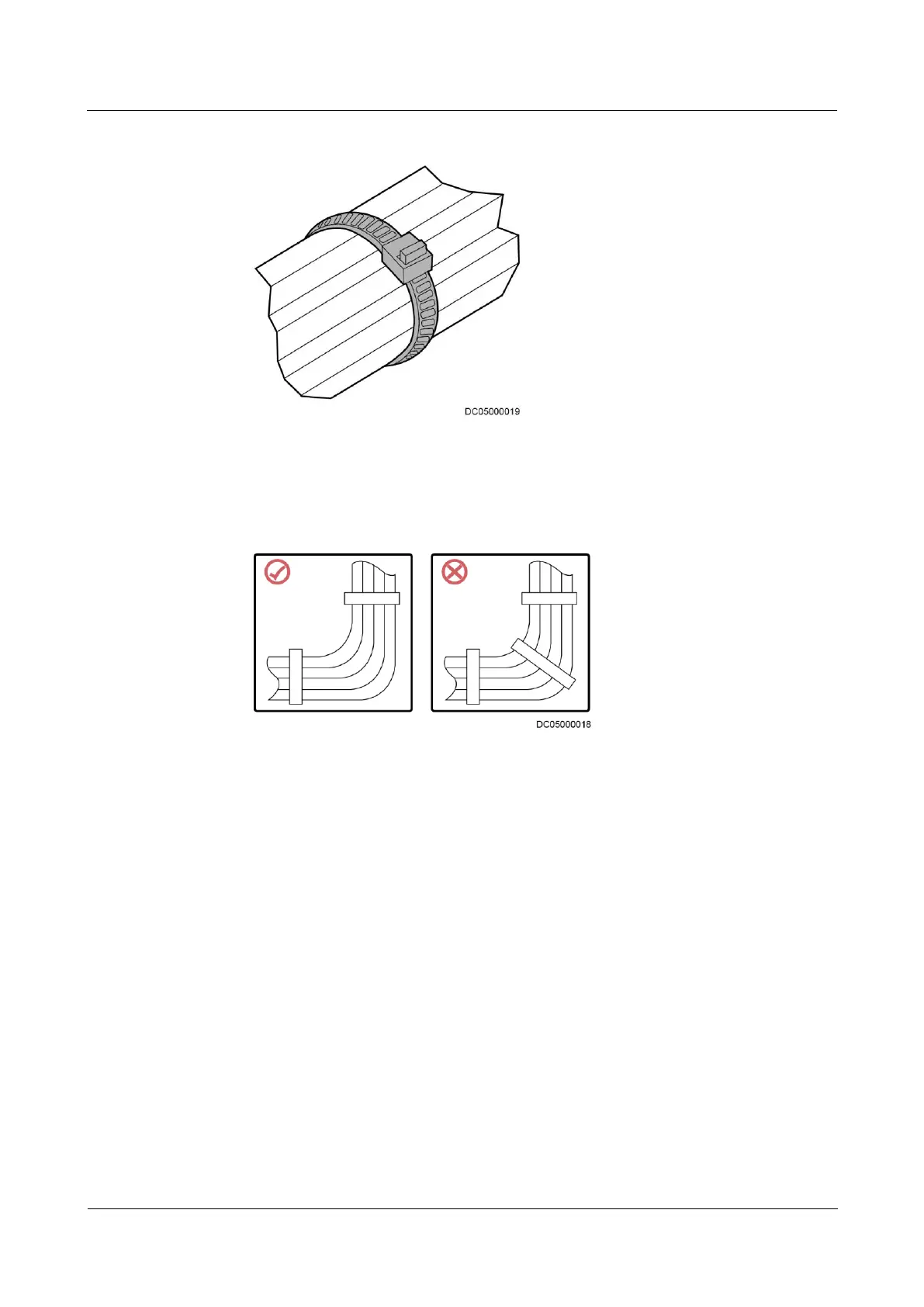

Figure 4-6 Cutting off the excess part of a cable tie
3. Do not use cable ties at a place where the cables are bent. Otherwise, the cable cores may
break due to strong stress, as shown in Figure 4-7.
Figure 4-7 Binding cables in a bending area
4. Ensure that the cable ties are wrapped and secured in the same direction and do not
generate interference with subsequent operations, as shown in Figure 4-8.
