FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.
Perform this step only when the system has double power inputs.
Ensure that cables to the power distribution box on the customer side are connected in
correct phase sequence.

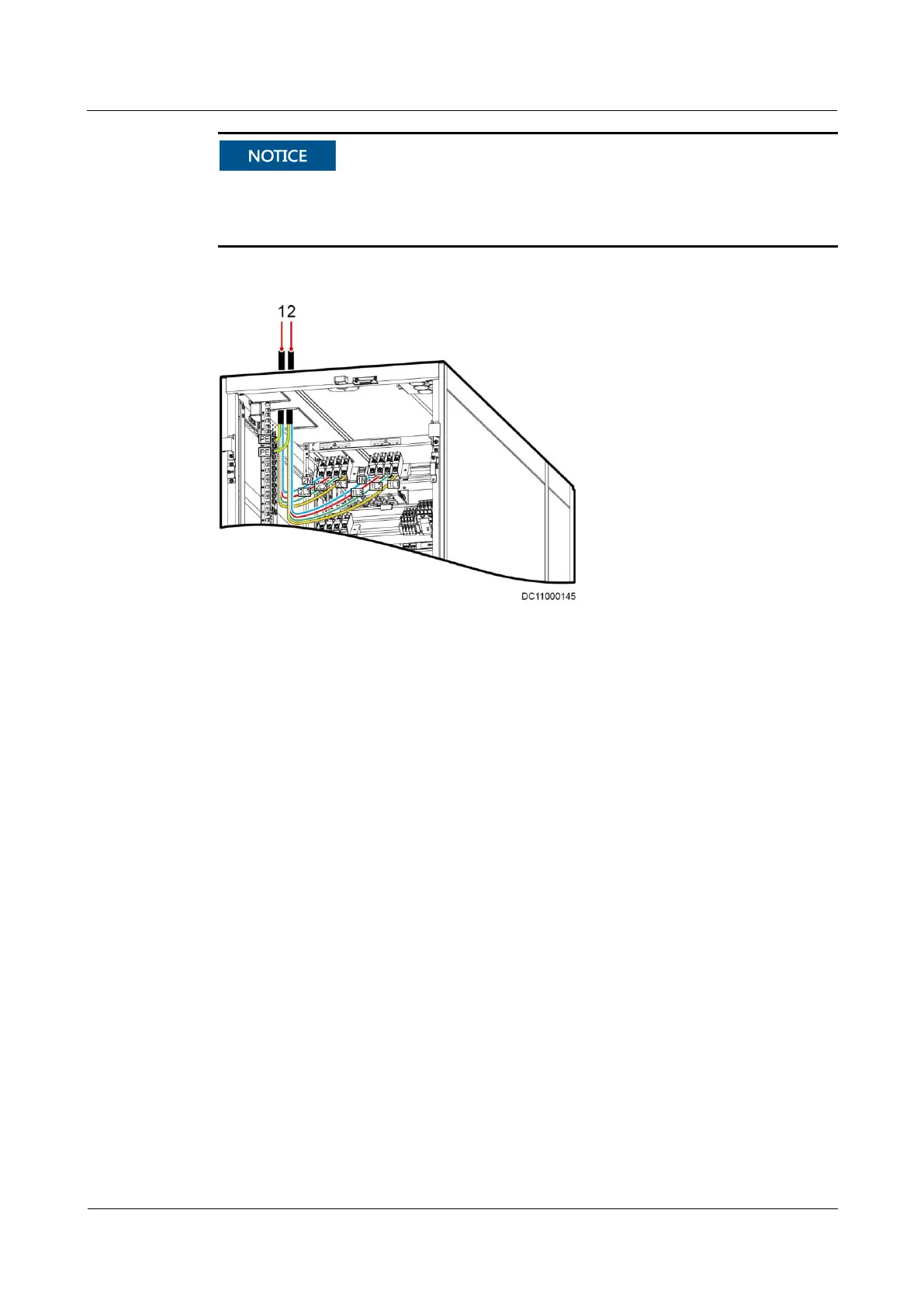

Figure 4-29 Connecting input power cables to the ATS PDU
(1) Second power input cable
(2) First power input cable
Step 2 (Optional) Connect input power cables to the 6 U PDU.
