FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
4 Cable Routing
Copyright © Huawei Technologies Co., Ltd.
215

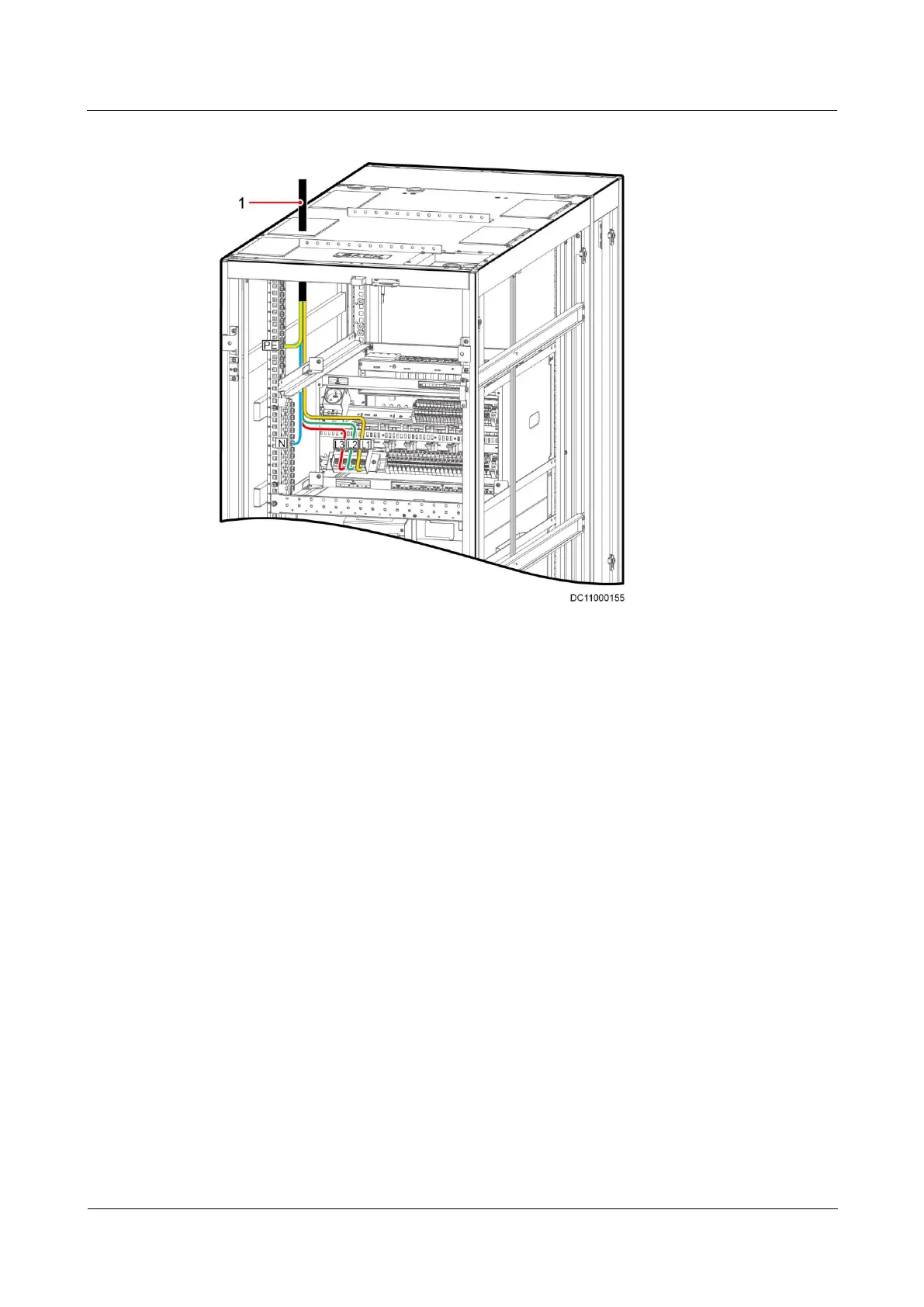

Figure 4-30 Connecting input power cables to the 6 U PDU
(1) Input power cable
Step 3 (Optional) Connect input power cables to the 3 U PDU.
