Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
2 Installation Preparations
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
23

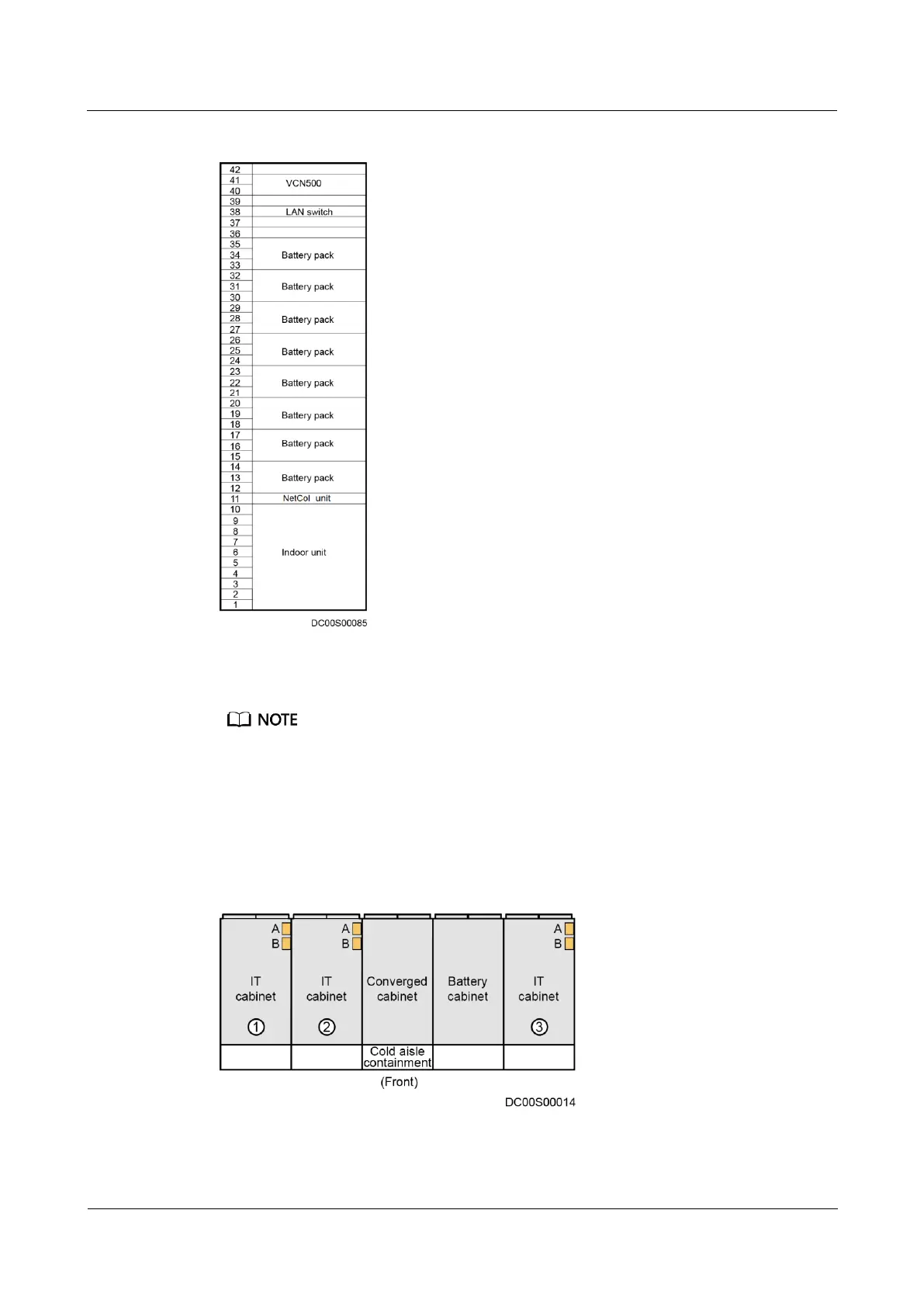

Figure 2-3 Component layout in the IT cabinet to the left of the Converged Cabinet
You are advised to number cabinets and PDU2000s based on Figure 2-4.

The following describes how to number cabinets and PDU2000s in a scenario with five cabinets.

(1), (2), and (3) refer to the cabinet number, and A and B refer to the PDU2000 number.

You are advised to number cabinets from left to right.

The battery cabinet and Converged Cabinet do not have to be numbered.

PDU2000s are deployed at the cabinet rear door and are recommended to be numbered from exterior
to interior.
Figure 2-4 Number example
