Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
55

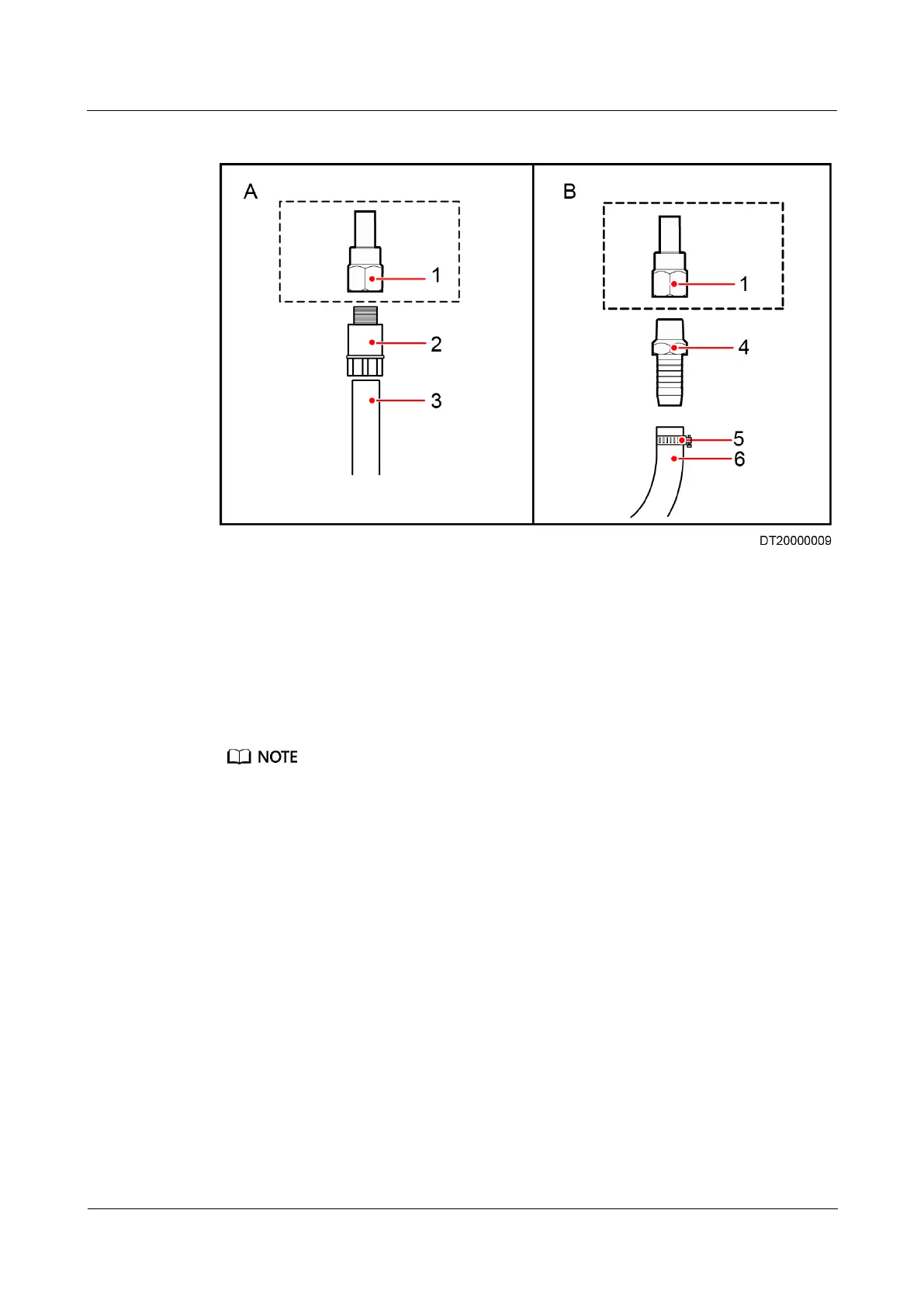

Figure 3-29 Connecting a water inlet pipe
(1) Connector with inner screw
thread: G 1/2 inch, delivered
with the water inlet pipe
(2) Rigid pipe conversion adapter:
G 1/2 inch, connected to a rigid
pipe with outer screw threads
(3) Rigid pipe:
made of PP-R or
other material
(4) Pagoda conversion adapter:
G 1/2 inch, connected to a pipe
with outer screw threads
(5) Hose clamp
(6) Hose: made of
EPDM or other
material
The object shown in the broken line box is the water inlet pipe connector with inner screw threads
delivered with smart cooling products. The hose clamp (part 5) is configured in standard configuration.
Other parts are not configured and need to be purchased onsite.
Pipe Support
Figure 3-30 shows a support for a refrigerant or water pipe. Select supports based on site
conditions.
