FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

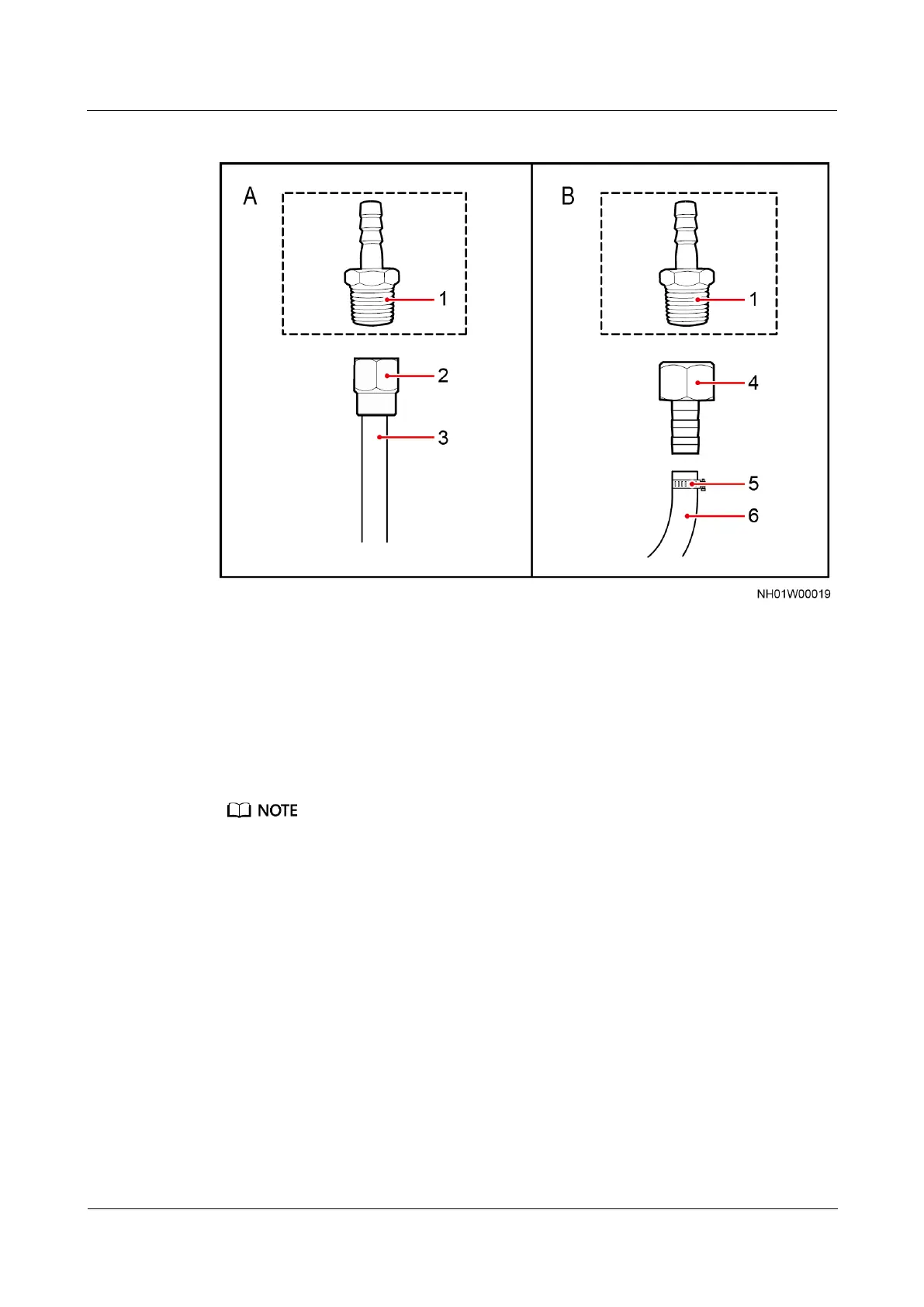

Figure 3-28 Connecting a drainpipe
(1) Drainpipe connector: BSPT
1/2-inch, delivered with the
smart cooling product
(2) Rigid pipe conversion adapter:
BSPP 1/2 inch, connected to a
rigid pipe with inner screw threads
(3) Rigid pipe:
made of PP-R or
other material
(4) Pagoda conversion adapter:
BSPP 1/2 inch, connected to a
pipe with inner screw threads
(6) Hose: made of
EPDM or other
material
The object shown in the broken line box is the drainpipe connector with outer screw threads delivered
with smart cooling products. The hose clamp (part 5) is configured in standard configuration. Other parts
are not configured and need to be purchased onsite.
Figure 3-29 shows how to connect a water inlet pipe.
