FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

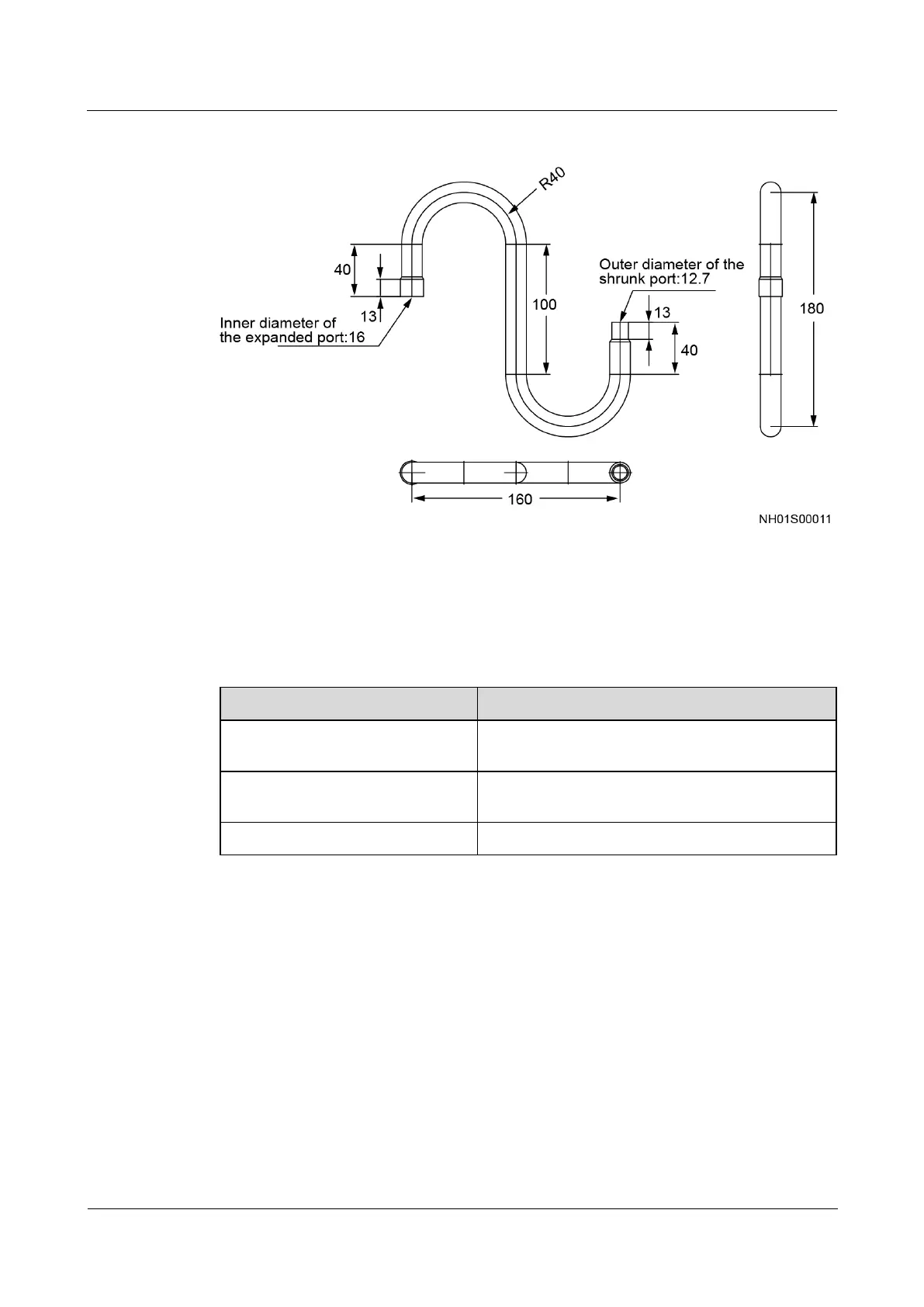

Figure 3-27 Oil trap (unit: mm)
Gas Pipe, Liquid Pipe, and Thermal Insulation Foam (Optional)
Table 3-2 lists the specifications for pipes and thermal insulation foam.
Table 3-2 Specifications
5/8 inch (15.88 mm), wall thickness: 1.0 mm;
pressure withstanding capacity ≥ 4.5 MPa
3/8 inch (9.52 mm), wall thickness: 0.75 mm;
pressure withstanding capacity ≥ 4.5 MPa
Water pipe
Figure 3-28 shows how to connect a drainpipe.
