FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

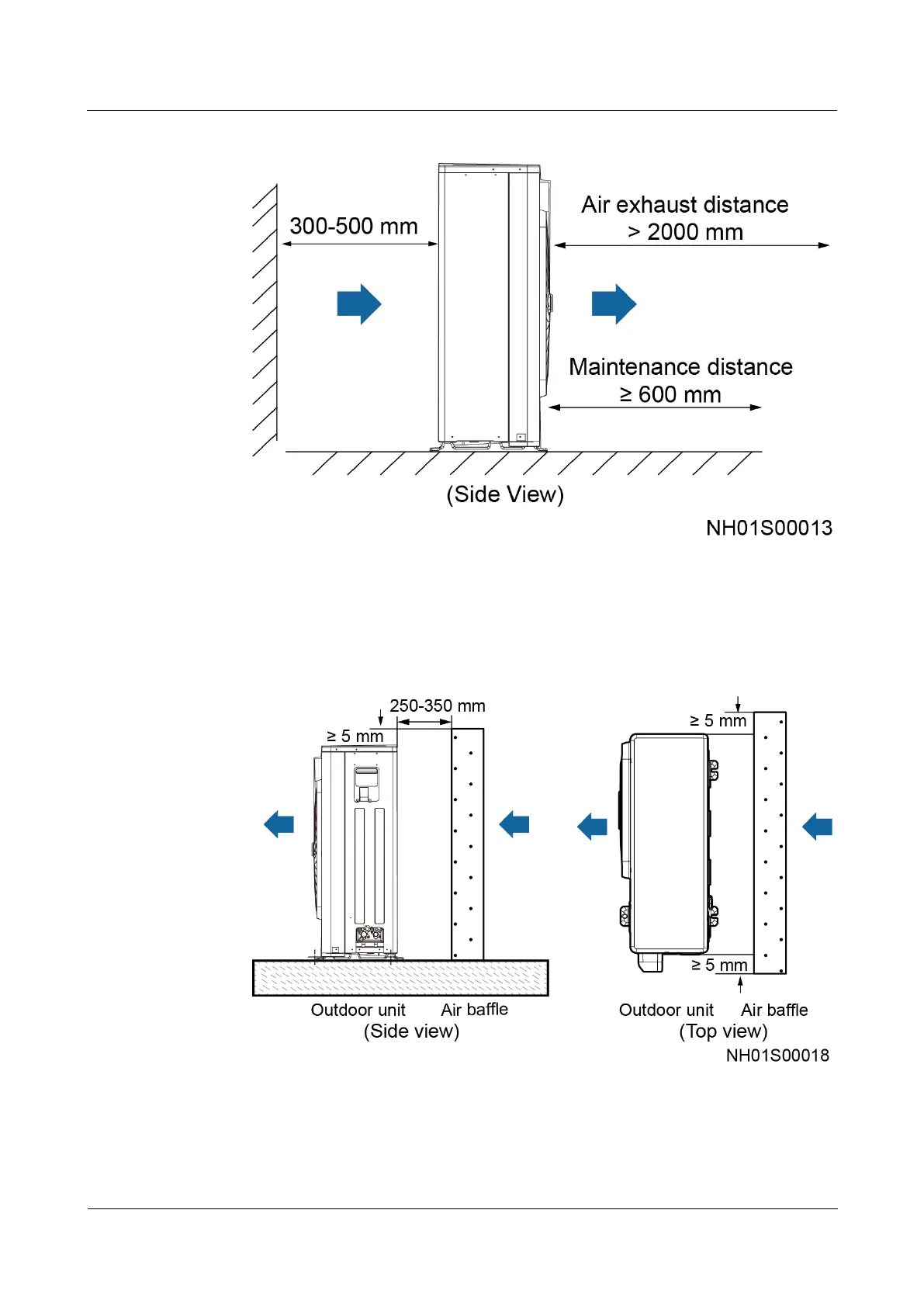

Figure 3-45 Space requirements for installing single outdoor unit
If the outdoor unit cannot be installed against a wall or the local outdoor temperature
may be below –10°C (NetCol500-A018) or 0°C (NetCol500-A020), place an air baffle at
the air intake side of the outdoor unit based on the Figure 3-46.
Figure 3-46 Space requirements for installing an air baffle
Installing an outdoor unit on a wall, as shown in Figure 3-47.
