Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
76

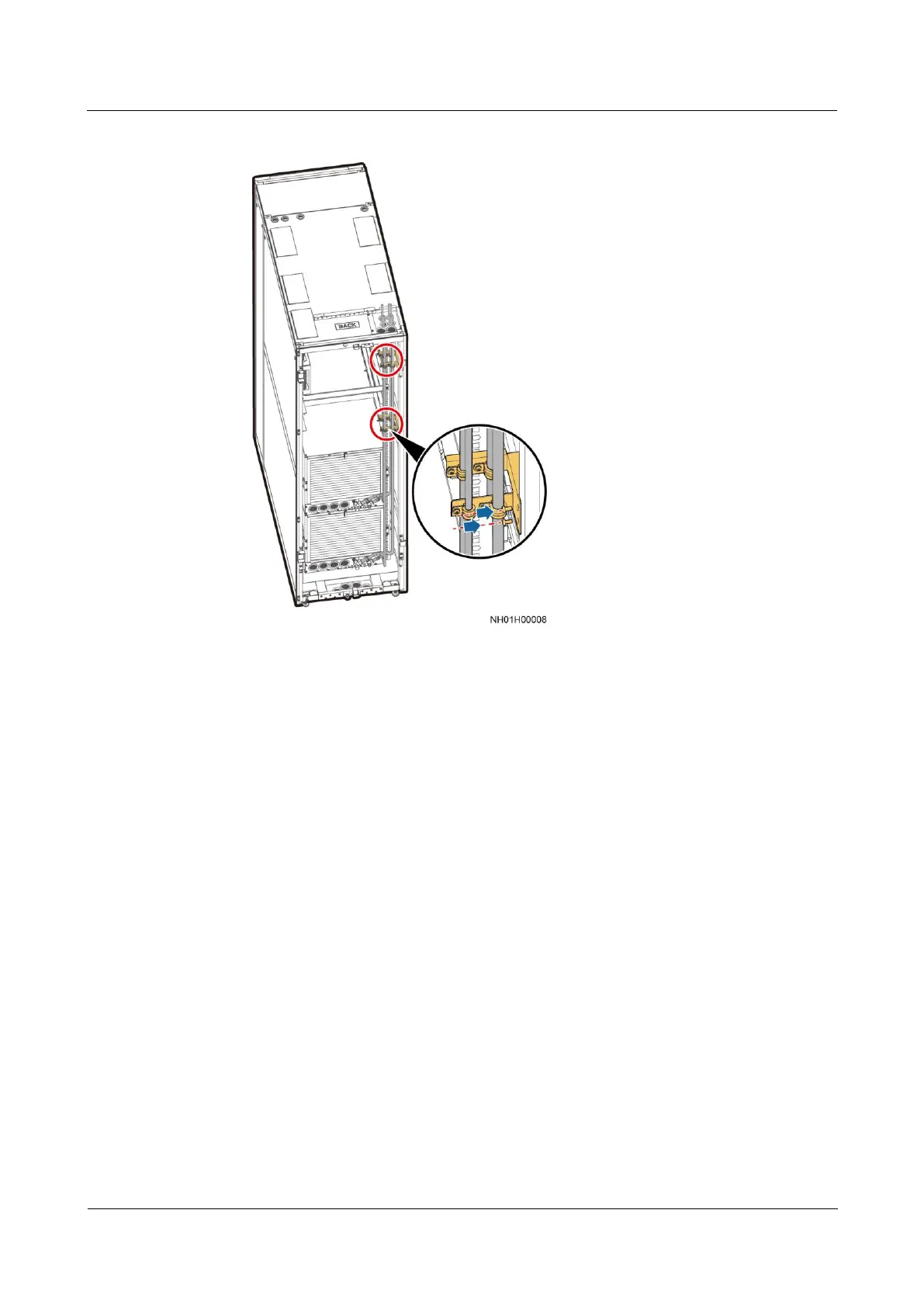

Figure 3-54 Top pipe routing inside the Converged Cabinet

(Optional for installing a third smart cooling product) Laying out pipes inside the IT
cabinet
a. Remove the six cable rings from the side-routed pipe in the rear of the IT cabinet, as
shown in Figure 3-55.
