Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
75

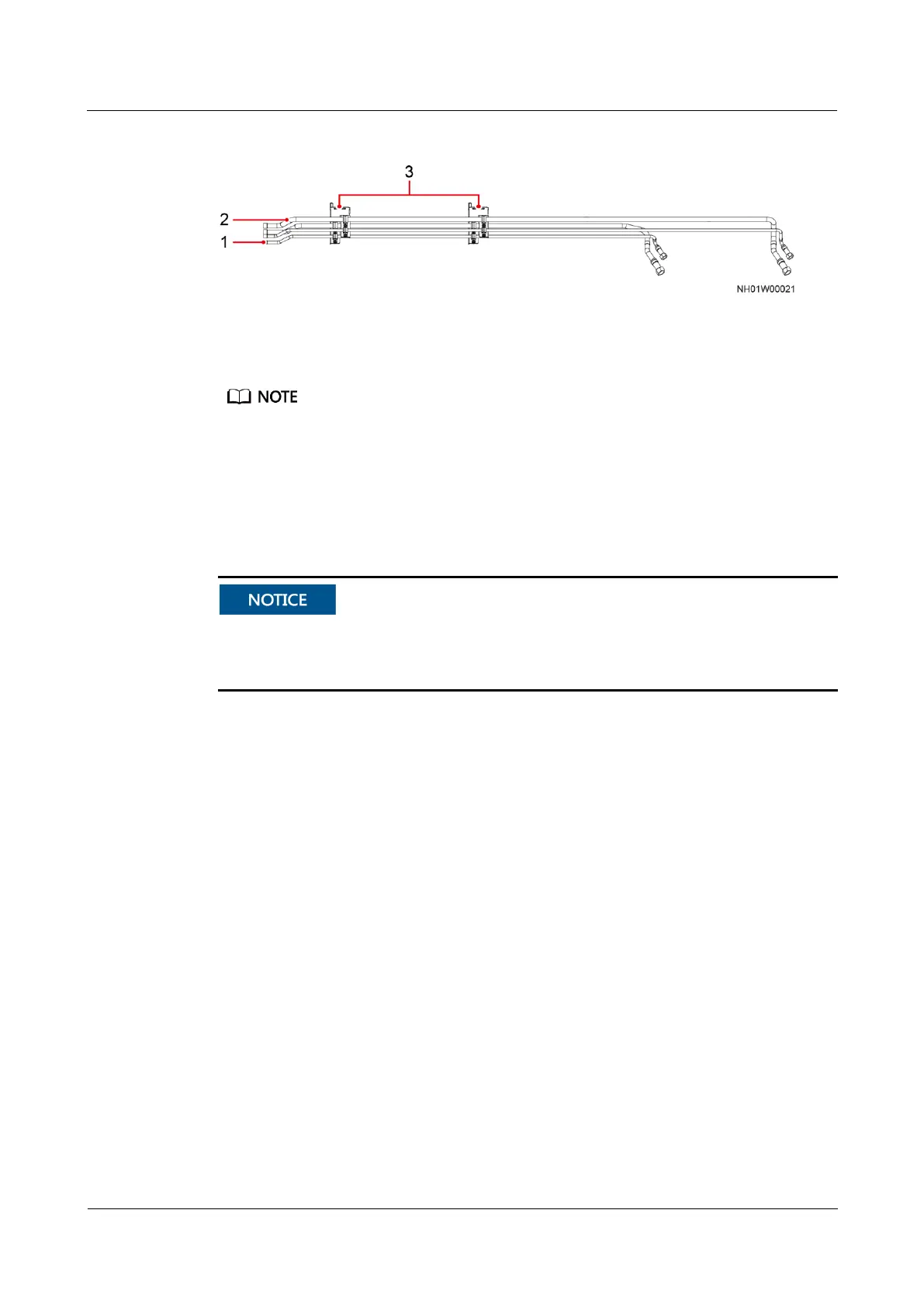

Figure 3-53 Pipe assembly
(1) Liquid pipe
(2) Gas pipe
(3) Sheet metal

Figure 3-53 describes how to route pipes inside a cabinet for the scenario with double smart cooling
products with top pipe routing. If there is only one smart cooling product, only one assembly of gas
pipe and liquid pipe is included.

The sheet metal shown in Figure 3-53 needs to be secured to the cabinet onsite.
Top Pipe Routing

When routing pipes from the top, do not route the pipes over servers or other devices to
protect the servers or other devices from being affected by pipe leaks.

Secure pipe fasteners to the cabinet.

Laying out pipes inside the Converged Cabinet
Figure 3-54 shows the pipe layout.
