iManager NetEco 6000
Device Installation and Commissioning Guide
Copyright © Huawei Technologies Co., Ltd.

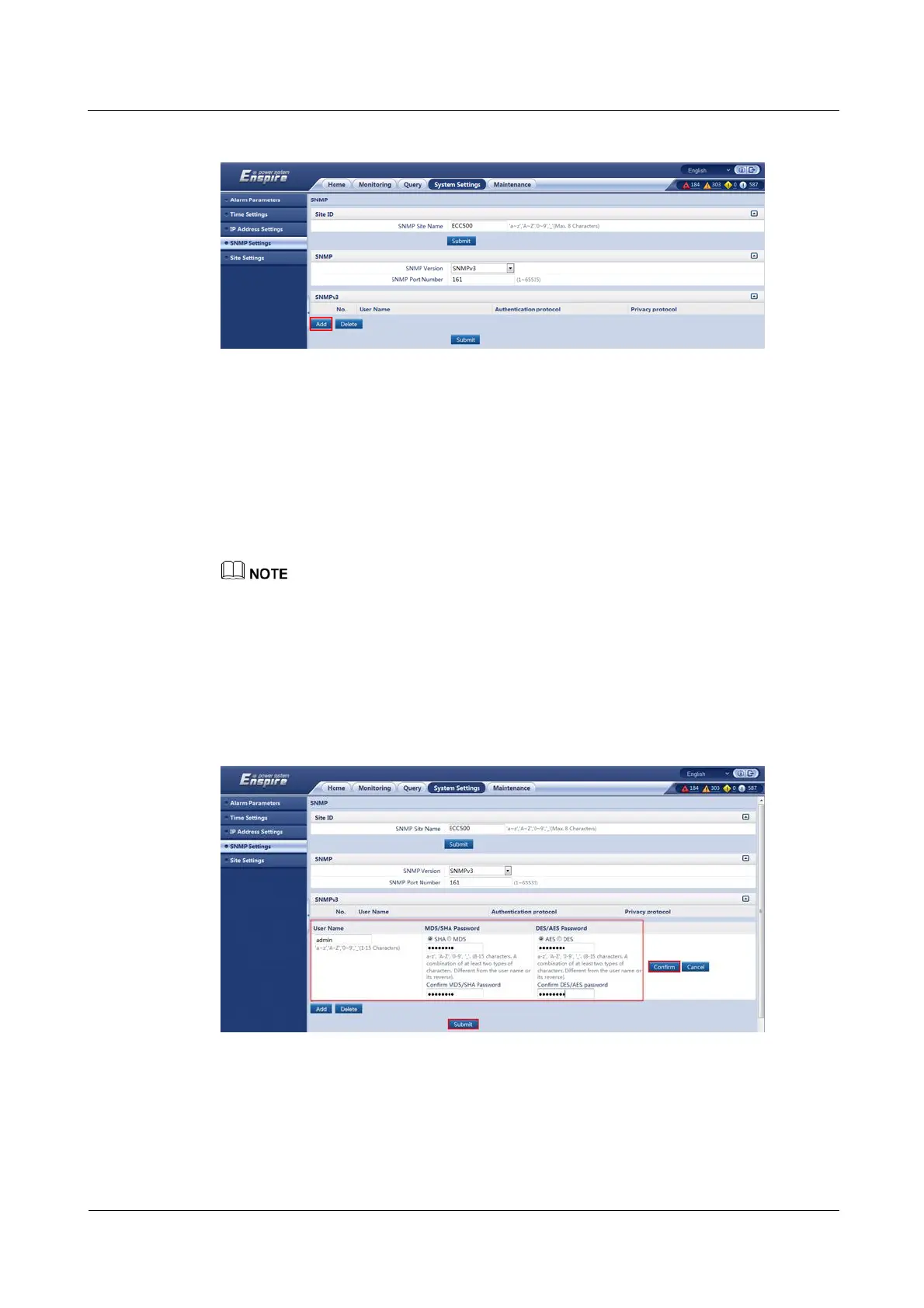

Figure 6-46 Setting SNMPv3 parameters (02)
Step 5 Set User Name, MD5/SHA Password, and DES/AES Password. Confirm MD5/SHA
Password and DES/AES Password, as shown in Figure 6-47.
Select SHA under MD5/SHA Password and AES under DES/AES Password, or select
MD5 under MD5/SHA Password and DES under DES/AES Password.
Any characters complying with the system can be entered for User Name, MD5/SHA
Password, and DES/AES Password. Record the specified parameters as you will need them
when setting up the ECC500 V6 collector on the NetEco.
MD5/SHA Password and DES/AES Password need to be set to different passwords.
MD5 and DES encryption algorithms are not secure. It is recommended that you set protocol
to SHA and AES. The following operations use the recommended settings as an example.
Step 6 After you set the parameters, click Confirm.
Step 7 Click Submit, as shown in Figure 6-47.
Figure 6-47 Setting the SNMPv3 parameters (03)
Step 8 Click Add in SNMP Trap, as shown in Figure 6-48.
