iManager NetEco 6000
Device Installation and Commissioning Guide
Copyright © Huawei Technologies Co., Ltd.

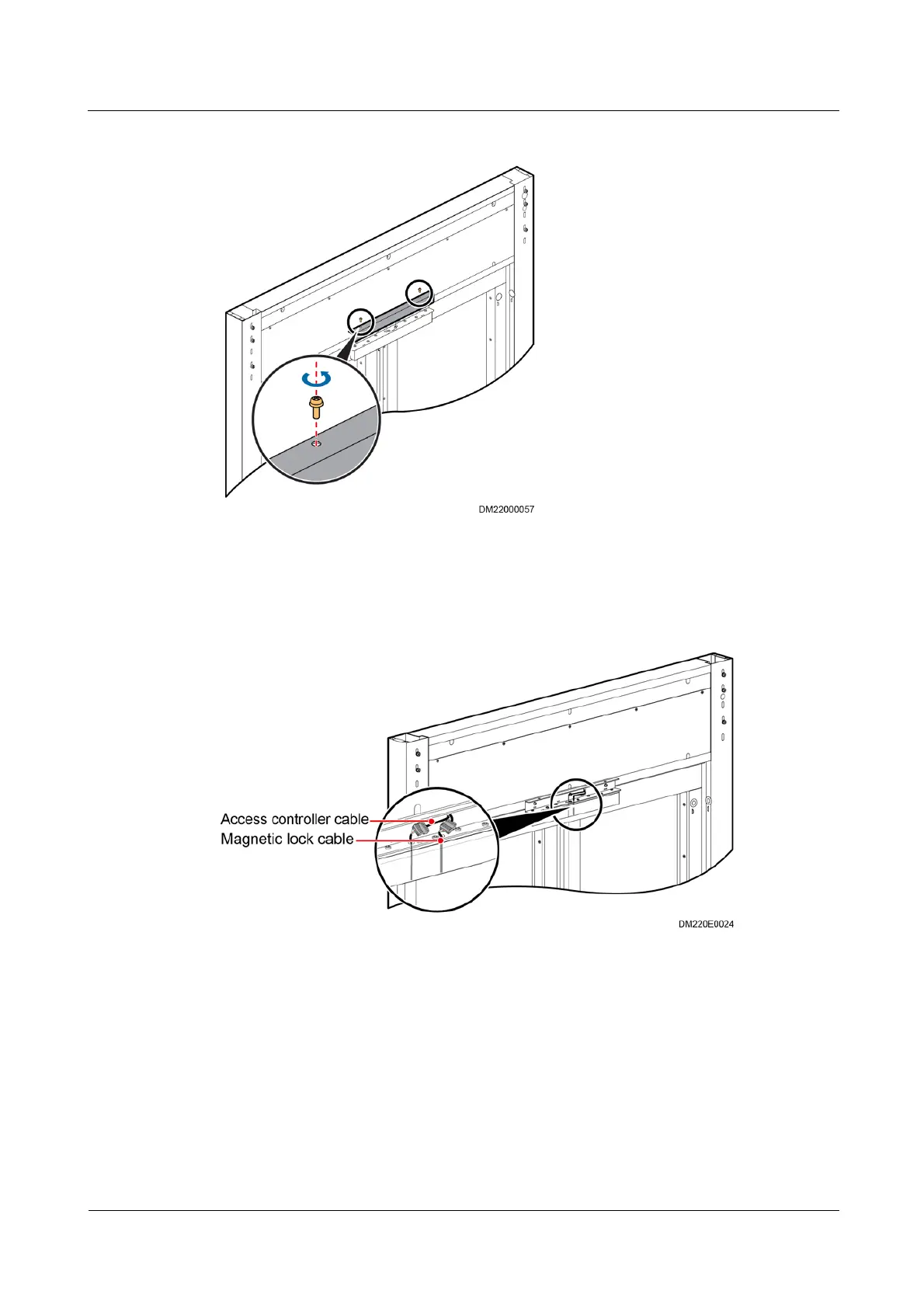

Figure 7-22 Removing the cover of the magnetic lock
Step 2 Remove magnetic lock cables from the terminals and route the cables out of the cable holes,
as shown in Figure 7-23.
Figure 7-23 Removing cables
Step 3 Remove the base and the magnetic lock, as shown in Figure 7-24.
