iManager NetEco 6000
Device Installation and Commissioning Guide
Copyright © Huawei Technologies Co., Ltd.

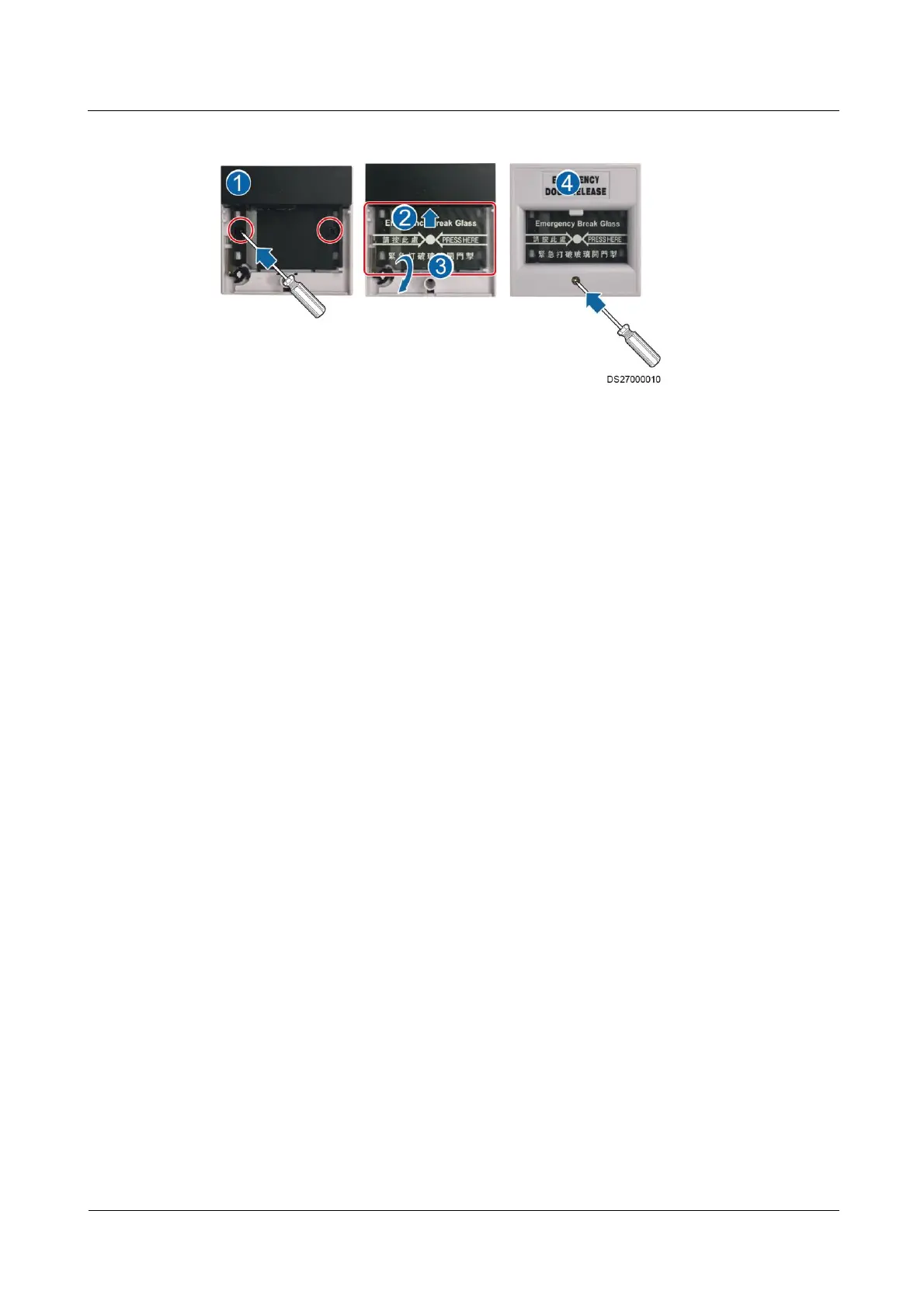

Figure 3-64 Installing an emergency door release button
1. Install the base of the emergency door release button, as shown by (1) in Figure 3-64.
2. Install the glass panel of the emergency door release button, as shown by (2) and (3) in
Figure 3-64.
3. Tighten screws for the emergency door release button using a Phillips screwdriver, as
shown by (4) in Figure 3-64.
----End
