Figure 1-82 shows the flowchart for commissioning the management channel between the OLT

and the GPON ONT.

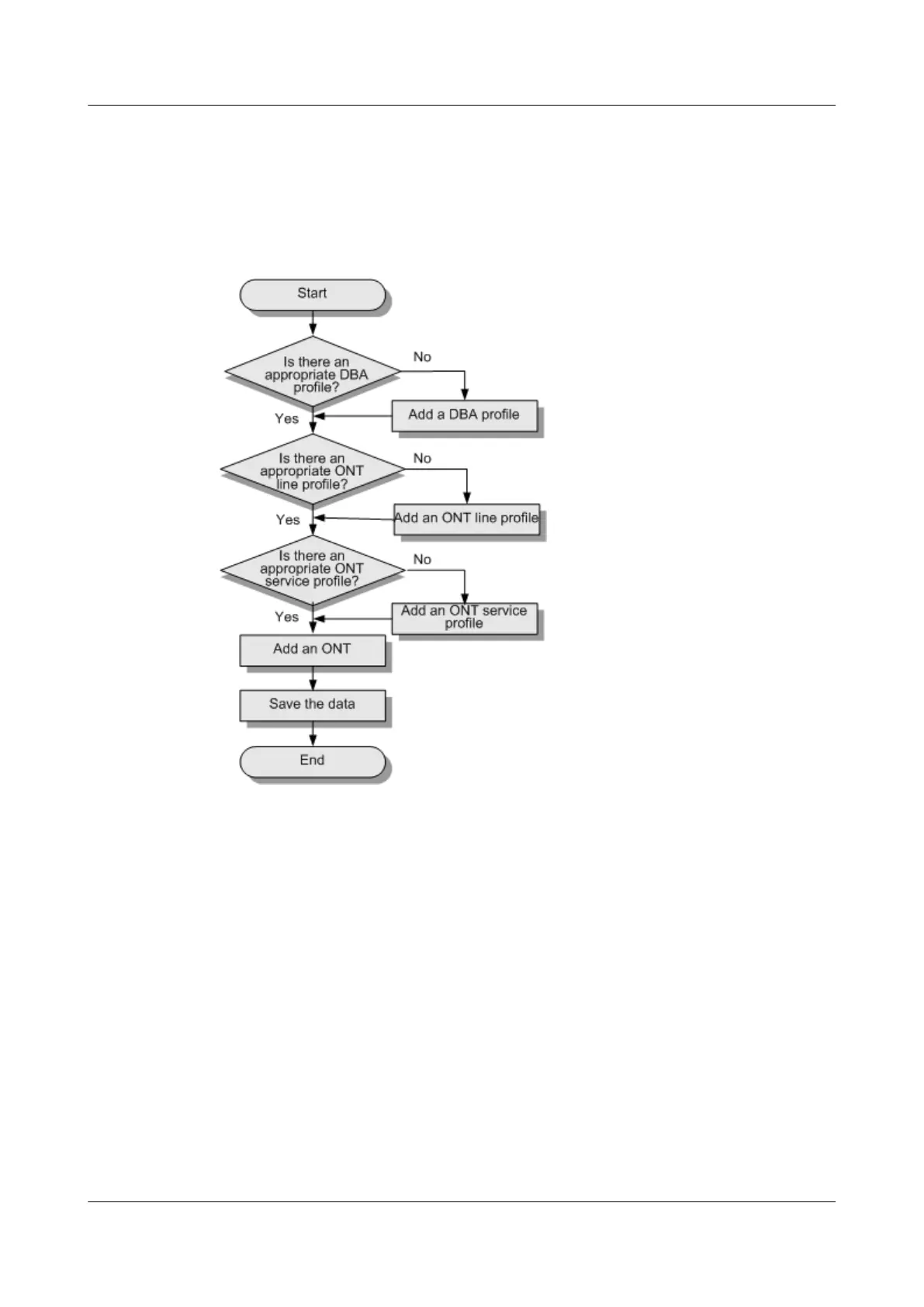

Figure 1-82 Flowchart for commissioning the management channel between the OLT and the

GPON ONT

Procedure

Step 1 Add a DBA profile.

The DBA profile ID is 12, the DBA profile uses the default name DBA-profile_12, the bandwidth

type is type1 (fixed bandwidth), and the user rate is the fixed 10 Mbit/s bandwidth.

SmartAX MA5600T/MA5603T/MA5608T Multi-service

Access Module

Commissioning and Configuration Guide

1 Commissioning

Issue 01 (2014-04-30) Huawei Proprietary and Confidential

180
