S6-5 S6-4 S6-3 S6-2 S6-1 Address
Value of Sub-
nodes
1 1 0 1 1 11011(27)
1 1 1 0 0 11100(28)
1 1 1 0 1 11101(29)
1 1 1 1 0 11110(30) is
used by the
ESC board, and
the H801ESC
board cannot be
set to this value.
1 1 1 1 1 11111(31)
Procedure
Step 1 Remove the cable connector if the H801ESC board is connected to an environment monitoring
cable.
Step 2 Loosen the screws on the H801ESC board anticlockwise by using the Phillips screwdriver, as
shown in (1) of Figure 1-3.

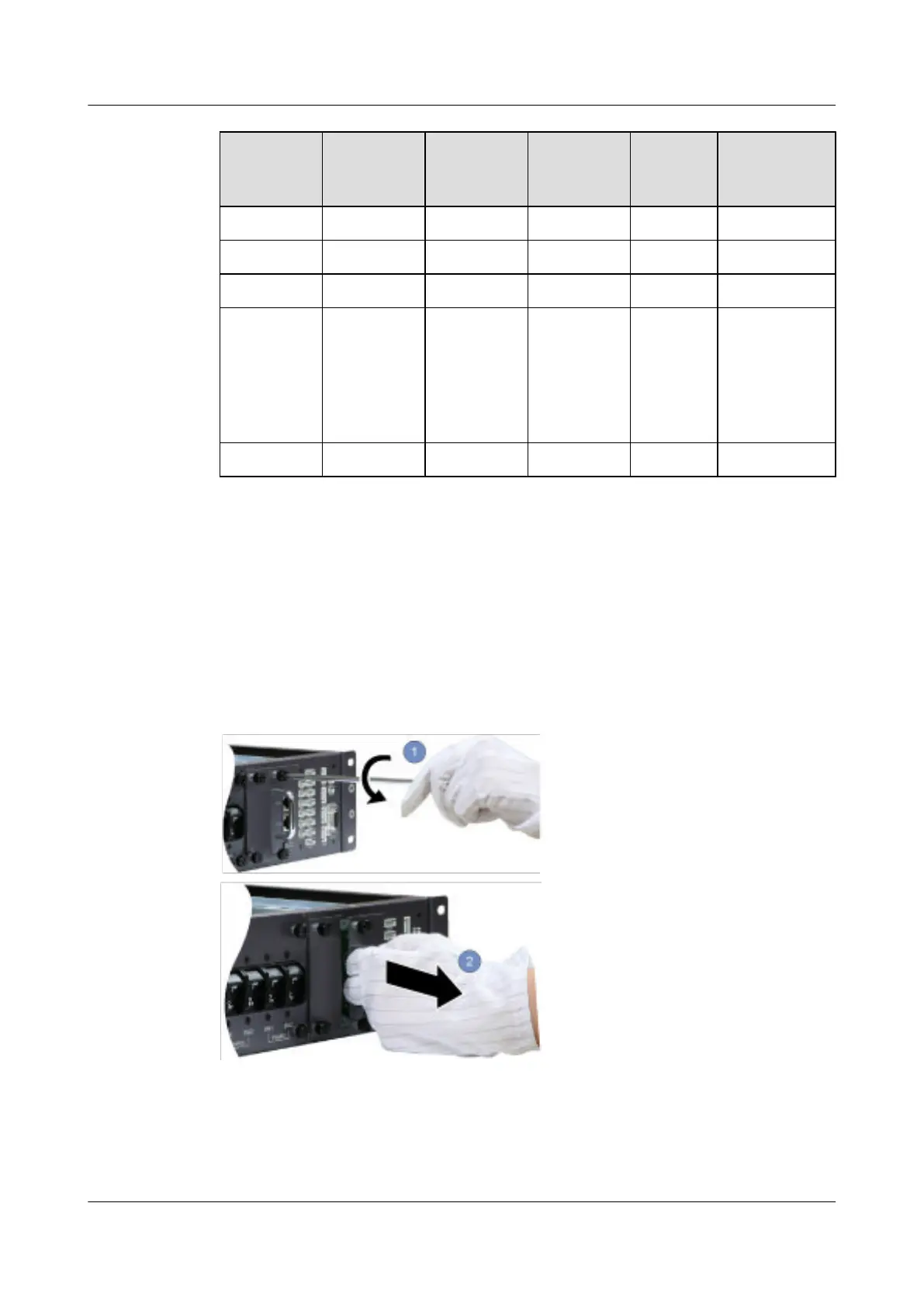

Figure 1-3 Removing the H801ESC board
Step 3 Hold the ejector lever of the front panel and remove the H801ESC board from the PDU, as shown
in (2) of Figure 1-3.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
1 Commissioning
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
