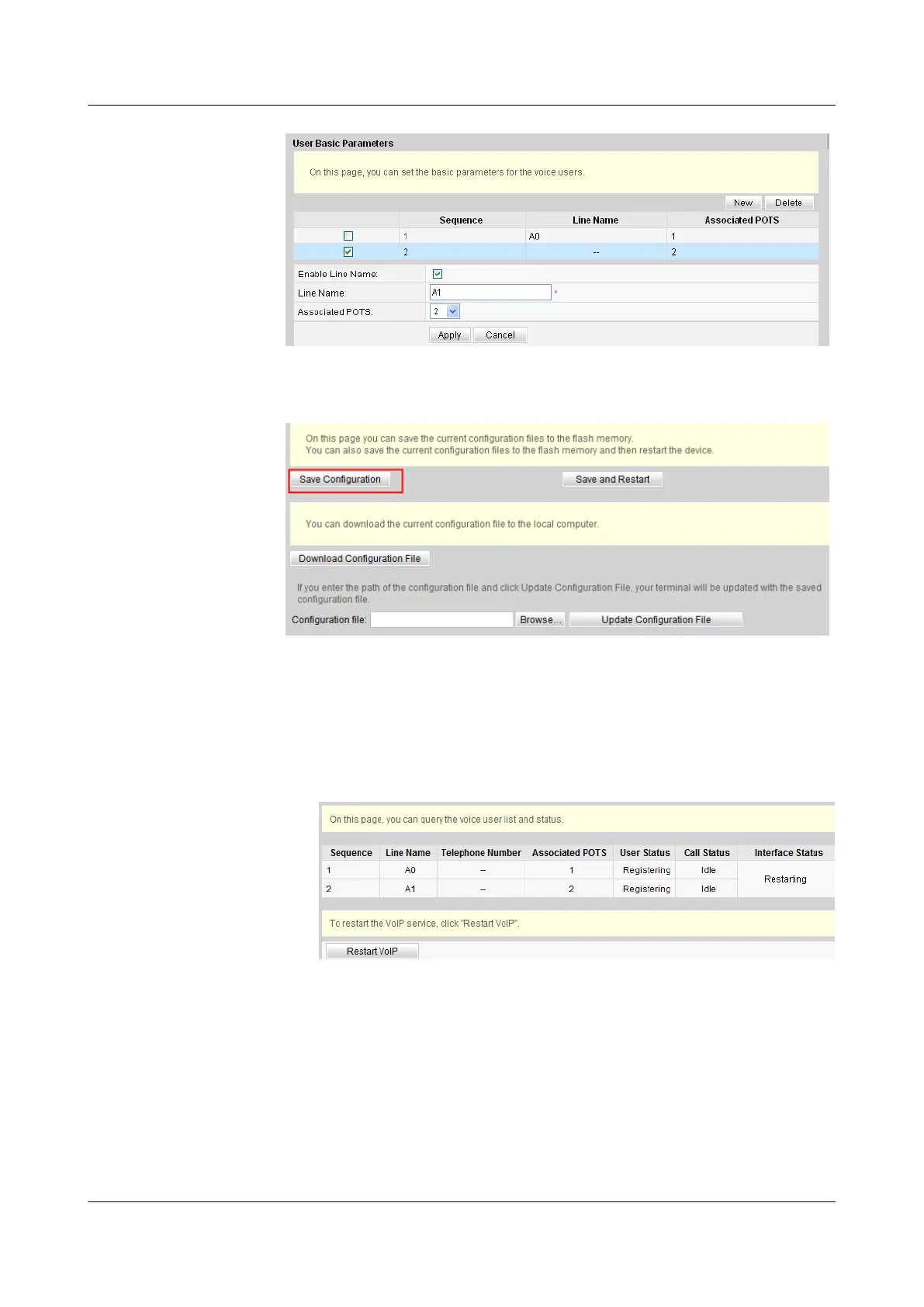

5. Save the configuration.
In the navigation tree, choose System Tools > Configuration File. In the right pane,
click Save Configuration to save the configuration.
6. Restart the voice service and check the voice user status.
a. Choose Status > VoIP Information. In the right pane, click Restart VoIP.
b. Choose Status > VoIP Information. In the right pane, User Status is Up.
Figure 10-7 shows the user status.
Figure 10-7 Registration status of voice users
7. Check the ONU connection status.
In the navigation tree, choose Status > WAN Information. In the right pane,
Status is Connected and the obtained IP address is displayed at IP Address.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
10 FTTD Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
764
