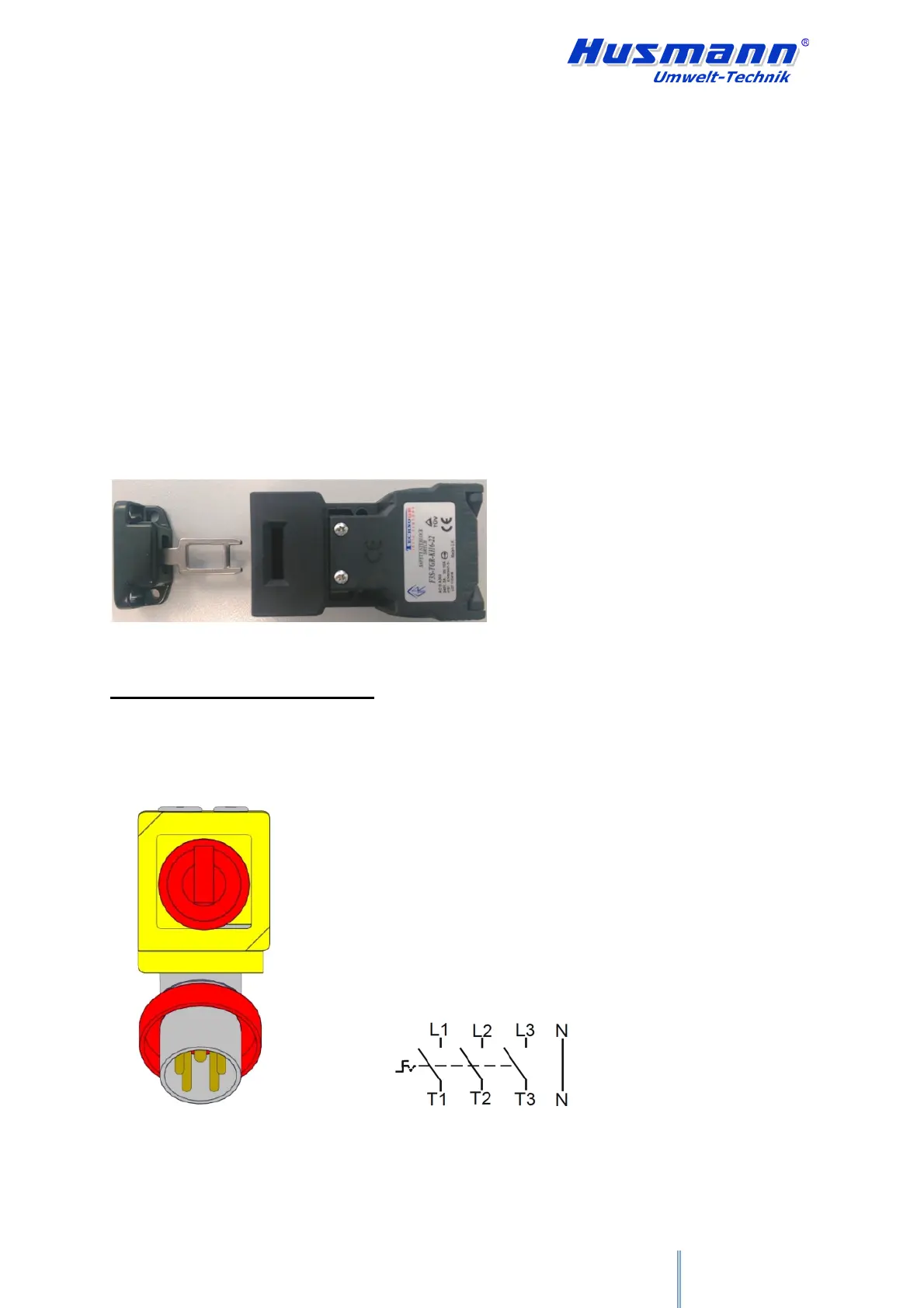

Omron Techno GR
Technical specification:
standards: EN ISO 13849- 1, EN 60204- 1, EN ISO 14119, IEC 60947- 5- 1
safety contacts: 2 break contacts
auxiliary contacts: 1 make contact
protection: IP 67
temperature range: −25 ° C to + 80 ° C
Mechanical service life: 2.5 × 106 switching cycles
Test interval (life time): 35 years
Main emergency stop switch
The machine is equipped with a main emergency stop switch. It is mounted on the right or left
side, seen in compaction direction, or on the front side.
Main emergency stop switch,
cast encapsulated, with CEE device plug
With N and PE terminals
0-position lockable
Rated continuous current: 16 A / 32 A
Maximum switching capacity: 15 kW
I
0
