4.4 Drive
The product has hydrostatic transmission. The speed
is set variably using the forward and reverse pedals.
AWD products have permanent 4-wheel-drive, so no
dierential lock is required.
The hydraulic pump and transmission are assembled
as a unit.

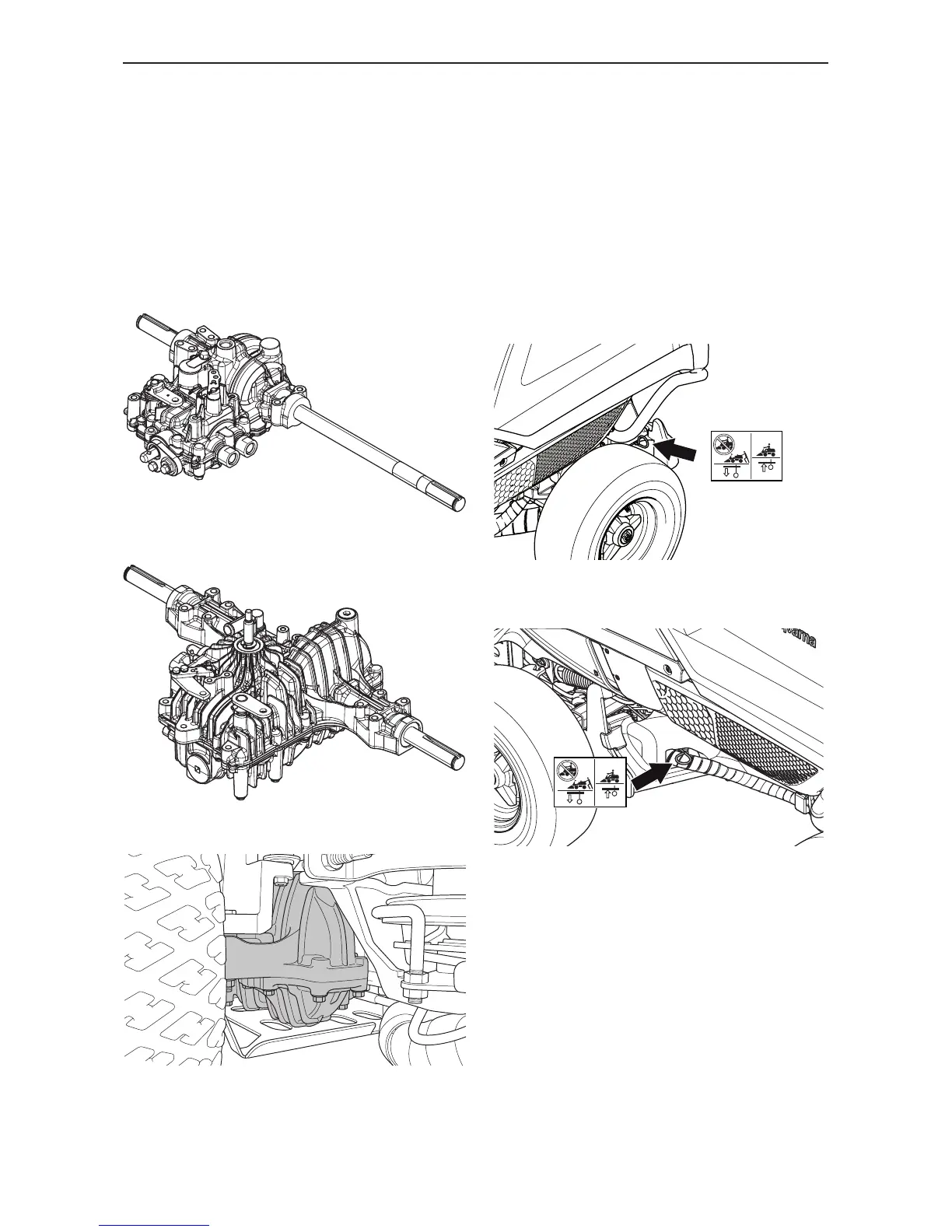

Front axle on AWD from the top. The axle consists of
a hydraulic motor, dierential and drive axles.
Rear axle on AWD from the top. Designed in the
same principle as the front axle.
On the AWD products, an integrated pump supplies
pressure to the power transmission.
The hydraulic system includes the power steering.
Design and Function
4.5 Bypass valves
To move the product with the engine o, the drive
system must be disengaged. Pull out the drive system
lever fully to disengage the drive on the axle. Push the
drive system lever in fully to engage the drive on the
axle. Do not use intermediate positions.
The drive system lever for model RC 318T is
positioned behind the left rear wheel. Model RC
320Ts AWD has one drive system lever for the front
and one for the rear axle. The drive system lever for
the rear axle is positioned behind the left rear wheel.
The drive system lever for the front axle for RC 320Ts
AWD is positioned on the inside of the left front wheel.
