Propulsion
5.2.2

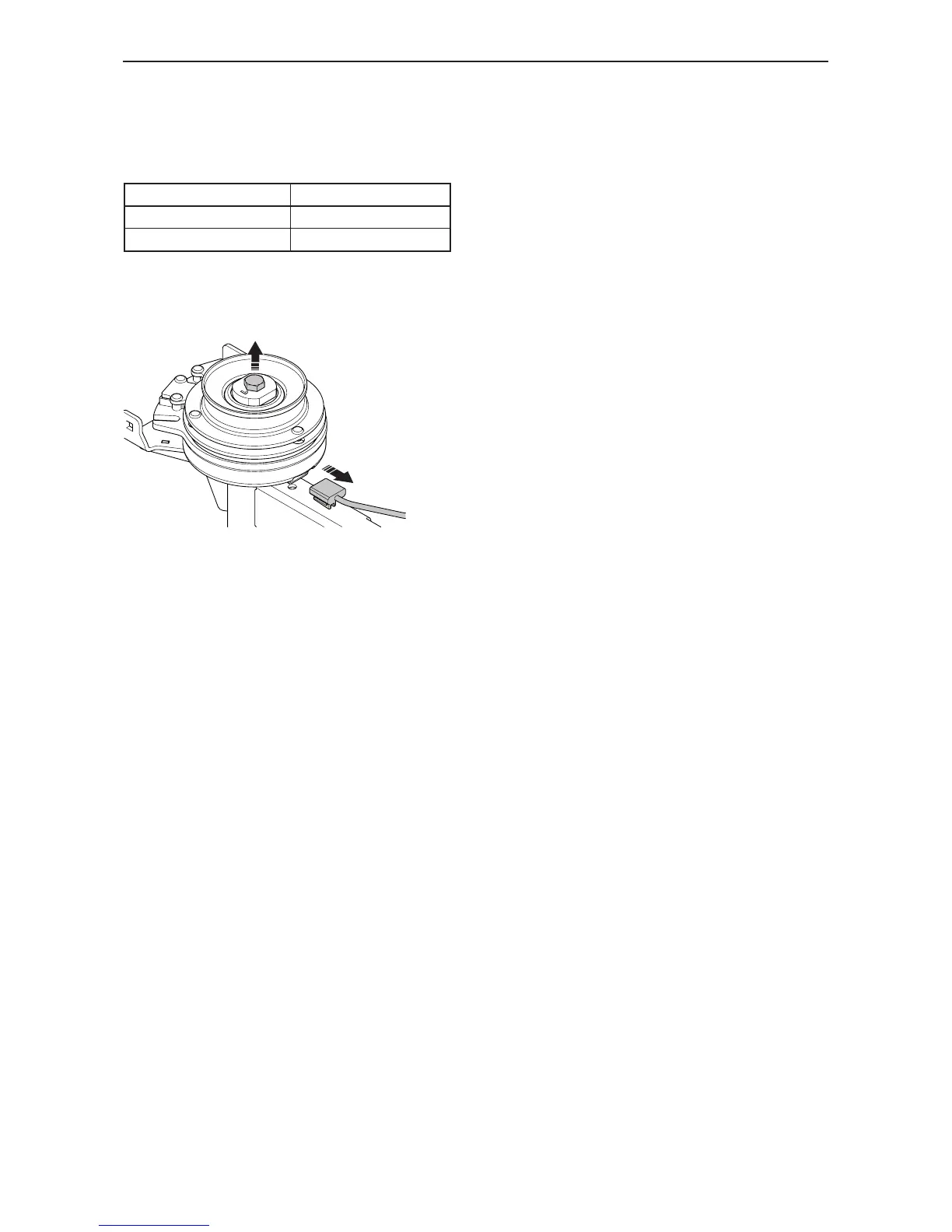

Solenoid clutch
Dismantling
T
ools
Dimension
Wrench x2
--
Ratchet wrench
16 mm
1.
Dismantle the auger
, see “5.9.1 Remove the
auger kpl” on page 66, and remove the belt.
2.
Counterhold underneath the magnetic clutch with
a wrench.
3.
Loosen the screw and disconnect the cable and
remove the solenoid clutch.
Assembly
1.
Assemble in opposite sequence.
2.
Place the belt pulley key in the groove on the
engine shaft.
26
28
