English – 37

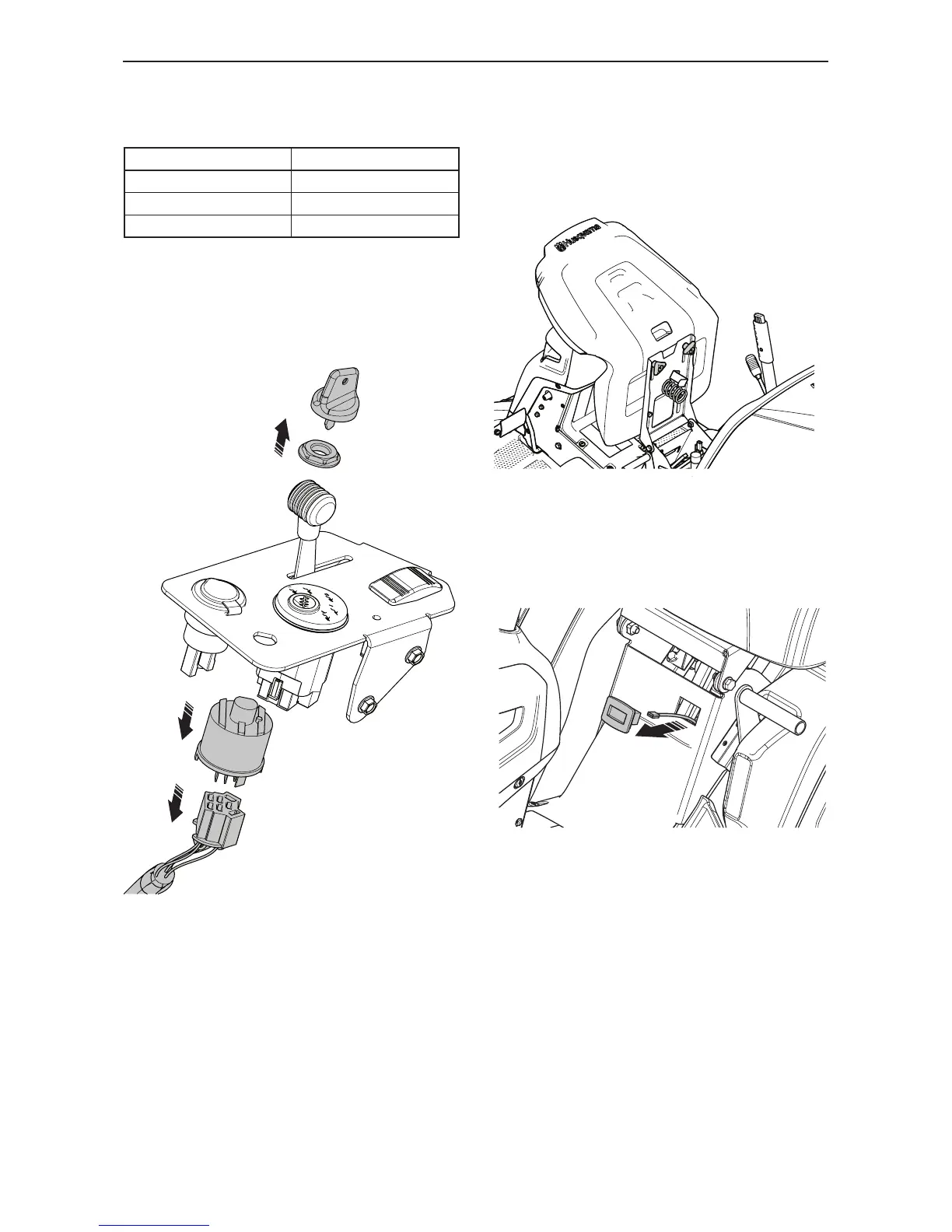

5.3.7 Ignition switch
Tools Dimension
Combination wrench 18 mm
Torx T30
Wrench --
Dismantling
1. Remove the right side cover. See “5.1.1 Covers”
on page 18.
2. Disconnect the cable from the ignition switch.
3. Remove the ignition key.
4. Remove the washer and nut under the ignition
key.
NOTE: Make sure that the connector goes into
the right position (click lock).
5. Release the ignition switch by pushing it down
through the panel.
Assembly
1. Assemble in opposite sequence.
Electrical system
5.3.8 Hour meter
Dismantling
1. Tilt the seat.
2. Disconnect the cables from the hour meter.
3. Remove the hour meter by compressing the
bracket and pressing it out through the steering
wheel console.
Assembly
Assemble in opposite sequence.
