English – 45
5.6.3

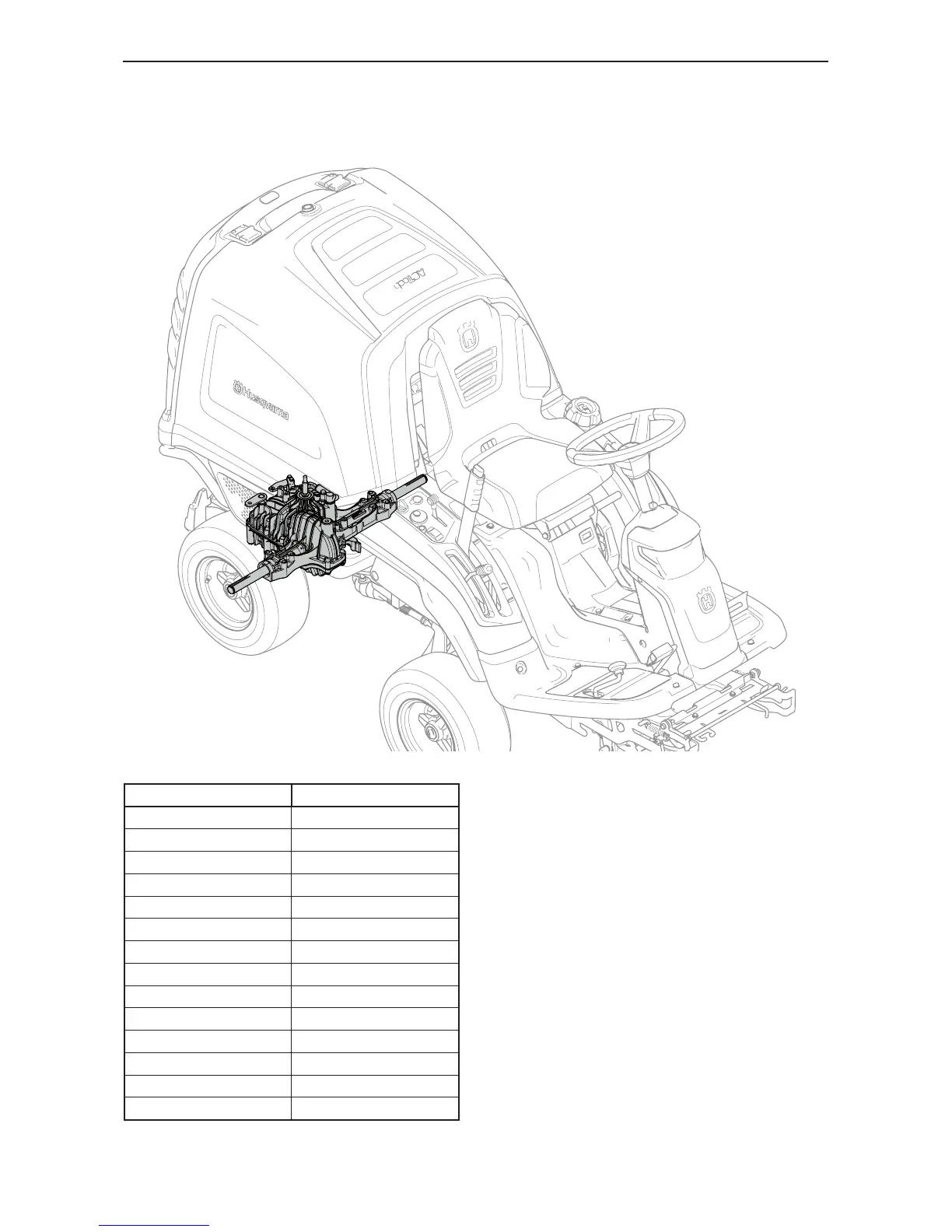

Rear transmission
T
ools
Dimension
T
orx
T20
Combination wrench
14 mm
Combination wrench
16 mm
Combination wrench
17 mm
Combination wrench
22 mm
Combination wrench
32 mm
Combination wrench
15 mm
Combination wrench
17 mm
Combination wrench
18 mm
Combination wrench
22 mm
Combination wrench
27 mm
Allen Key
3 mm
Allen Key
10 mm
T
orque wrench
–
Hydraulic system
44
46
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction and Safety Regulations
3
General
3
Target Group
3
Revisions
3
Tools
3
Safety Instructions
3
General Directions
3
Special Safety Instructions
3
Symbols on the Product
4
Risk of Sparks
4
2 Delivery and Service
6
Service Schedule
6
Assembly and Checks
8
Battery
8
Steering Wheel
8
Engine Oil Level
8
Transmission Oil Level
8
Tire Pressure
8
Cutting Deck
8
Test Running
9
Fueling
9
Starting the Engine
9
Speed Control
9
Final Inspection
9
3 Service Tools
10
Laser Tachometer
11
Safety During Use
11
Remember When Measuring
11
Measure Rpm
11
Read the Last, Highest and Lowest Values
11
Change Battery in Laser Tachometer
11
Maintenance
11
Screw Fasteners
12
Hydraulic Couplings
12
Torque and Lubricaton Requirements Schedule
13
4 Design and Function
14
Serial Number
14
Product Serial Number (1)
14
Engine Serial Number (2)
14
Transmission Serial Number (3)
14
Engine
15
Steering
15
RC 318Ts
15
RC 320Ts AWD
15
Bypass Valves
16
Drive
16
Cutting Deck
17
Lift Lever for the Cutting Deck
17
5 Repair Instructions
18
Chassis
18
Covers
18
Throttle Cable
19
Driver's Seat
20
Brake Cable
21
Wheel Hub
23
Propulsion
24
Engine
24
Solenoid Clutch
27
Transmission Oil Change
28
Replacing the Hydrostat Filter
28
Replacing the Engine Oil Filter
29
Changing Engine Oil
29
Replacing the Engine Air Filter
30
To Replace the Spark Plug
30
Hydrostatic Cable
31
Wheel Speed
31
Electrical System
33
Electrical System Overview
33
Auger Control Switch
34
Battery
34
Fuses
35
Safety System
36
Replacing the Light Bulbs
36
Ignition Switch
37
Hour Meter
37
Switch for Tilting the Collector
38
Power Outlet
38
Sensor for Collector Full
38
Open the Collector with a Discharged Batteryl
38
Fuel System
39
Fuel Tank
39
Replacing the Fuel Filter
40
Cooling System
41
Changing the Oil Cooler
41
Hydraulic System
42
Hydraulic Hygiene
42
Component Locations
44
Rear Transmission
45
Front Transmission RC 320Ts AWD
47
Seal Replacement Outgoing Shaft
50
Steering Cylinder
51
Bleeding the Hydraulic System
52
Spin-On Filter
52
Cutting System
53
Tool Frame
53
Cutting Deck
54
Changing the Belt on the Cutting Deck
58
Checking the Parallelism of the Cutting Deck
58
Adjusting the Parallelism of the Cutting Deck
59
Adjusting the Cutting Height Range
59
Checking and Adjusting Ground Pressure
60
Blades
61
To Remove Blades with Bearings
62
Sharpening and Balancing the Blades
63
Belts
64
Replacing the Rear Drive Belt
64
Replacing the Centre Belt
65
Auger
66
Remove the Auger Kpl
66
Remove the Auger from Auger Kpl
67
To Remove the Auger Belt and Gear Wheels
68
To Remove Blockage from the Auger
69
6 Specifications
70
Technical Data
70
Technical Data - Sound and Vibration Levels
70
Technical Data - Fluids
70
Technical Data - Dimensions
71
Technical Data - RC 318T / RC 320Ts AWD
72
7 Appendices and Schedules
74
Wiring Diagram
74
Wiring Auger
75
Wiring Auger
76
Hydraulic Diagram
77
Troubleshooting Schedule
78
Belt Position Diagram
83
