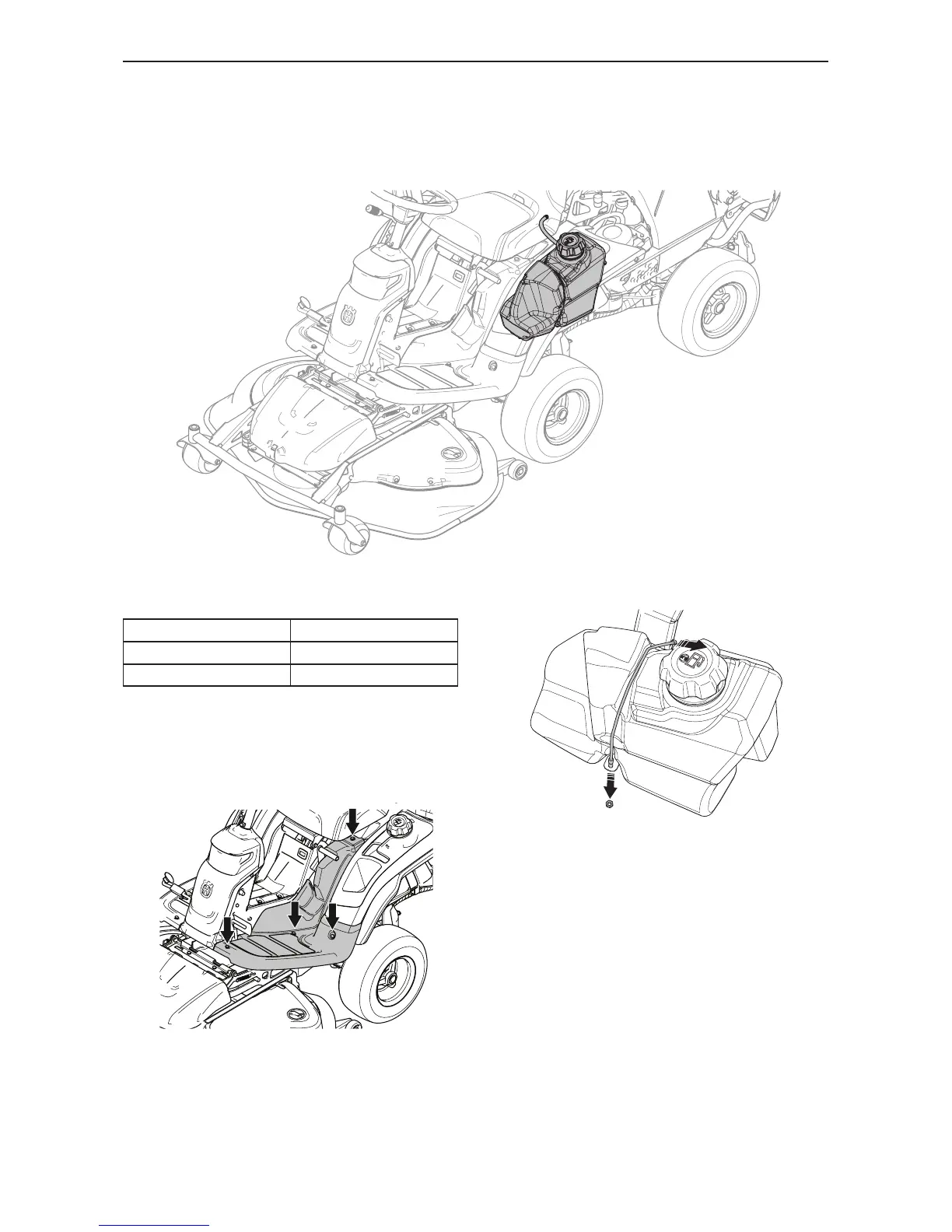

Fuel system
5.4.1
Fuel tank
T
ools
Dimension
Combination wrench
13 mm
T
orx
T30
1.
Compress the hose with pliers and remove the
hose
clip
and
hose
from
the
bottom
fuel
lter
connection. Make sure to keep the end of the
hose above the level in the fuel tank from now on.
2.
Remove the left wing cover
.
Fuel system
3.
Remove the tank support and lift away the tank.
38
40
