English – 41
5.5 Cooling system

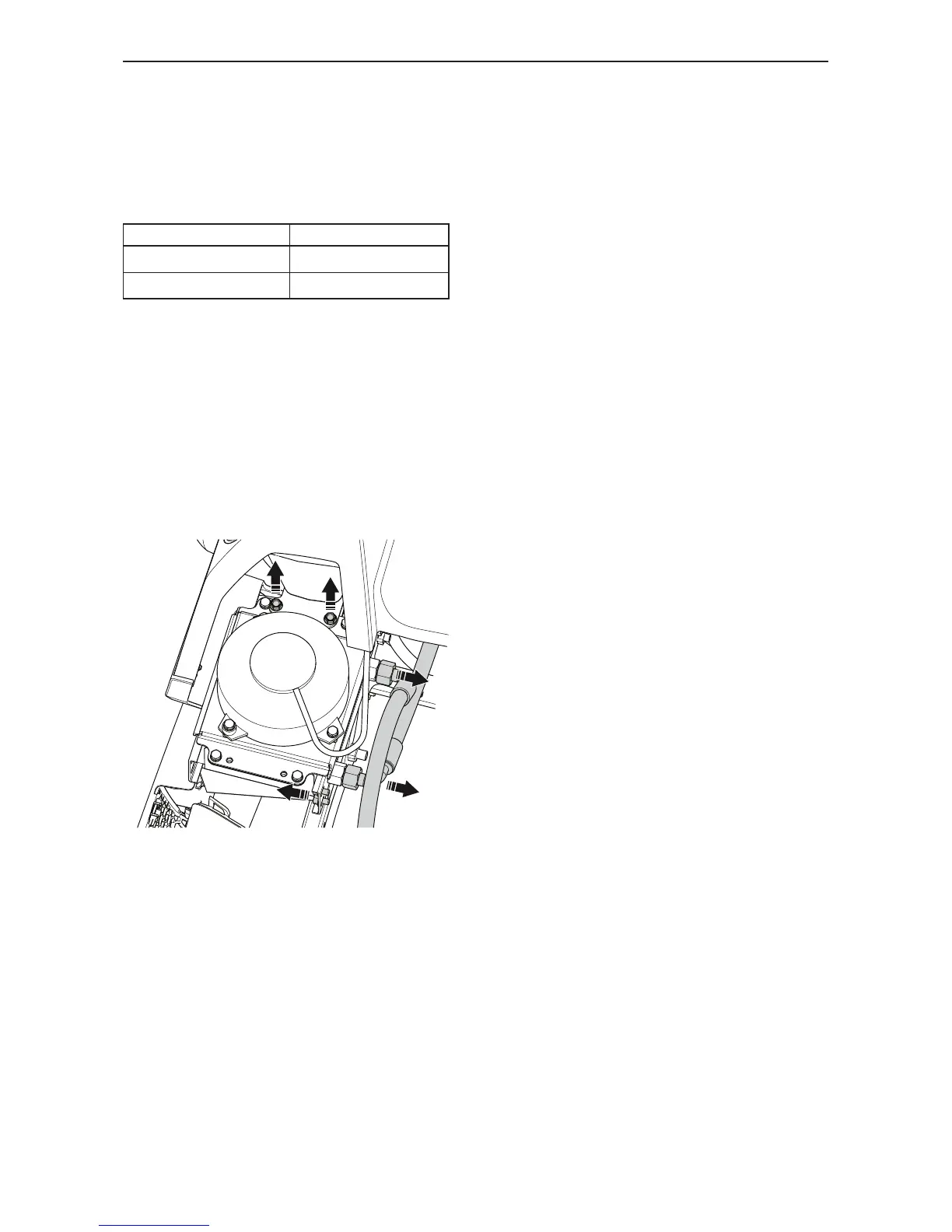

5.5.1 Changing the oil cooler
Dismantling
Tools Dimension
Combination wrench
10 mm
Combination wrench
19 mm
1. Tilt the collector.
2. Disconnect the electrical connector.
3. Mark the hydraulic hoses so that they are
reconnected correctly.
4. Clean thoroughly as instructed. For further
instructions, see “5.6.1 Hydraulic hygiene” on
page 42.
5. Disconnect the hydraulic hoses. Fit sealing plugs
to prevent leakage and contamination.
6. Remove the screws, 2 on each side of the cooler.
7. Lift out the oil cooler.
Assembly
Assemble in opposite sequence.
