38 – English
Electrical system

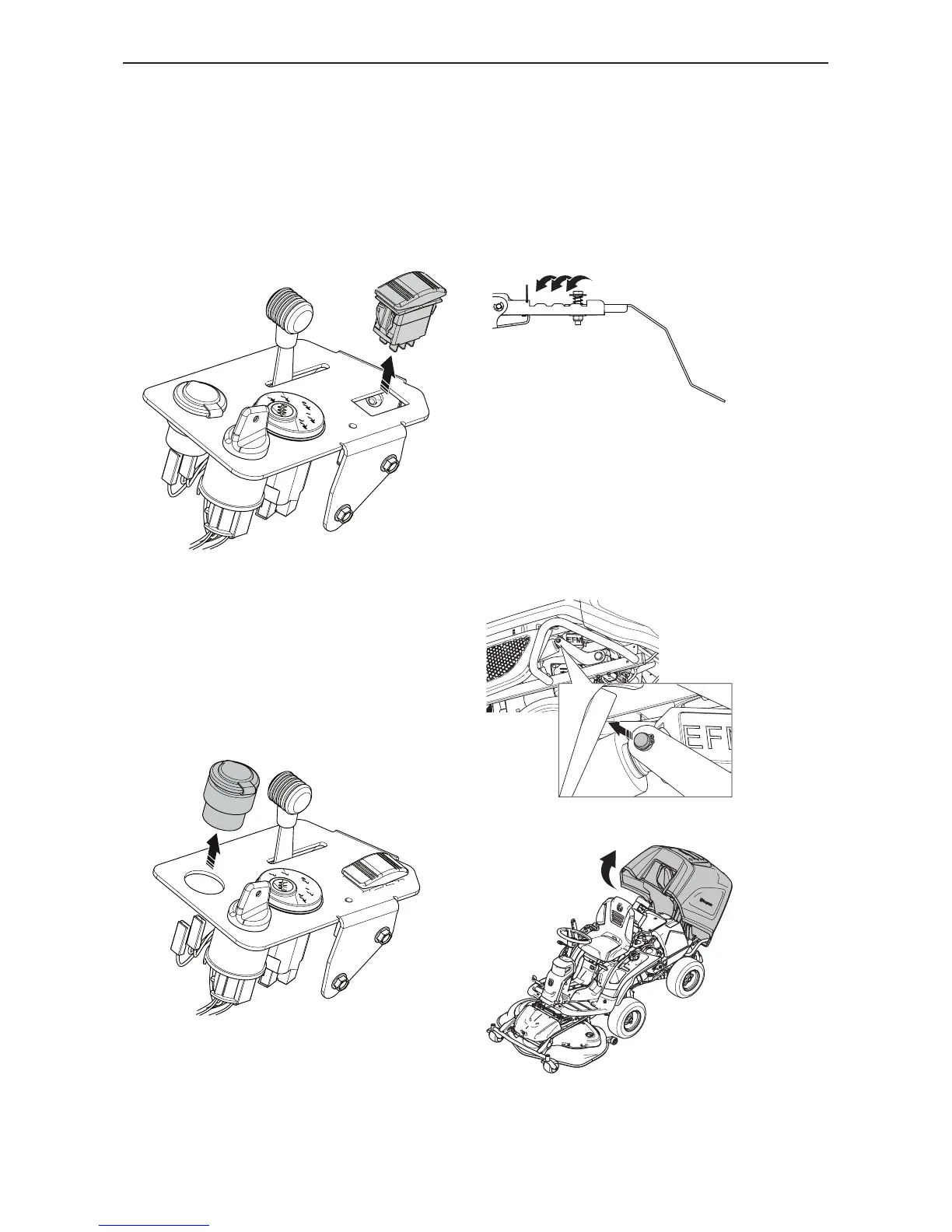

5.3.11 Sensor for collector full
To adjust the sensor for collector full
If the collector hatch opens or the auger stops before
the collector is full, it is necessary to adjust the sensor
for collector full. There are 4 positions for the sensor
for collector full.
Make sure the sensor is free from grass.
5.3.12 Open the collector with a
discharged batteryl
If the battery is at and it is necessary to tilt the bag,
proceed as follows:
1. Remove the circlip and the stud bolt on the
actuator.
2. Tilt the collector manually.
5.3.9 Switch for tilting the collector
Dismantling
1. Remove the side cover. See “5.1.1 Covers” on
page 18.
2. Disconnect the cable from the switch.
3. Lift the switch up through the panel.
Assembly
Assemble in opposite sequence.
5.3.10 12V power outlet
1. Remove the side cover. See “5.1.1 Covers” on
page 18.
2. Disconnect the cable from the outlet.
3. Remove the nut underneath the panel.
4. Lift the outlet up through the panel.
Assembly
Assemble in opposite sequence.
