68 – English
5.9.3
T

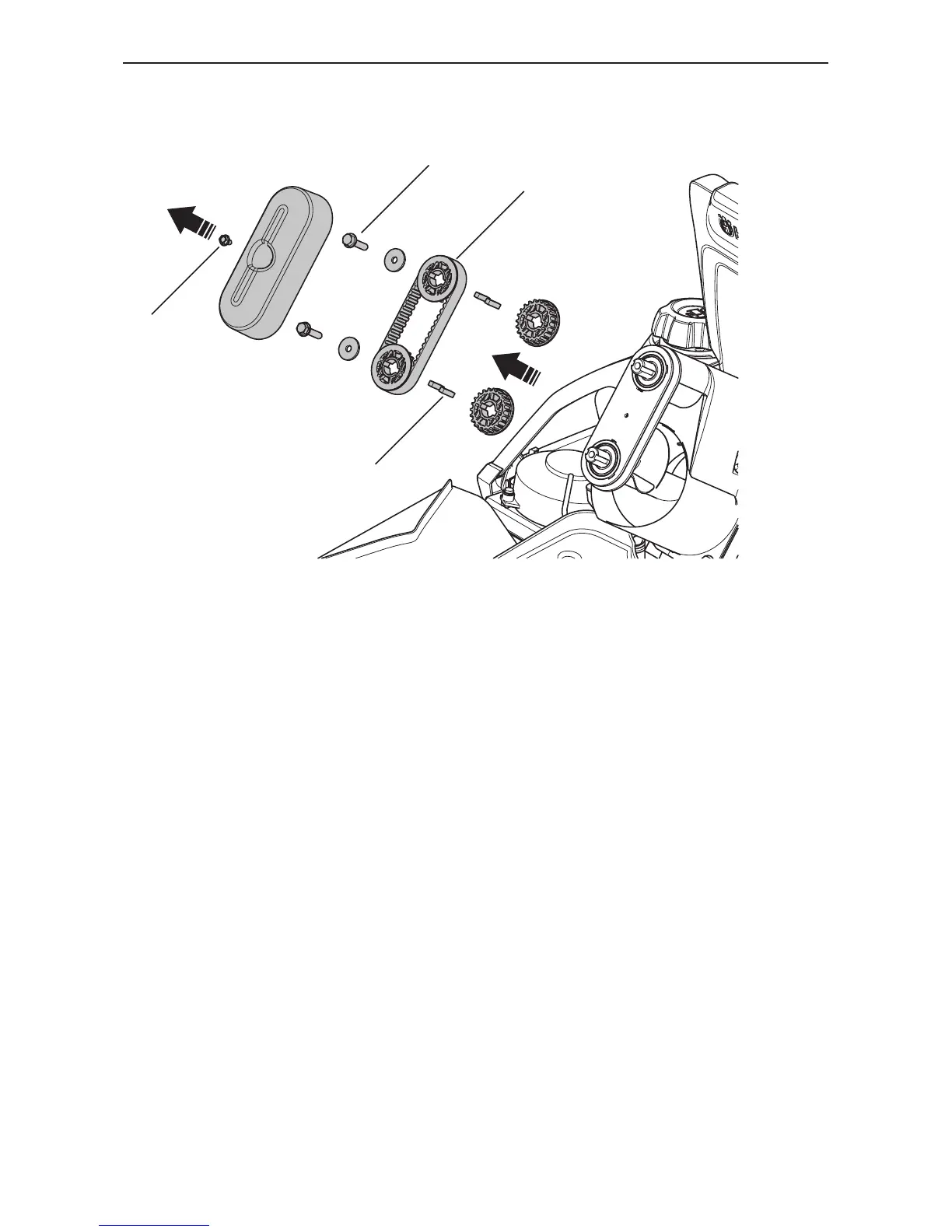

o remove the auger belt and gear
wheels
Removal
1.
T
ilt the collector
.
2.
Remove
the
screw
and
lift
o
the
belt
cover
(1).
3.
Remove
the
upper
screw
(2)
and
lift
o
the
belt
and gear wheel (3).
4.
Remove the lower screw and and gear wheel.
5.
Remove the keys (4).
Assembly
Do the above instructions in opposite sequence.
1
2
3
4
Auger
67
69
