18 – English
Chassis
5 Repair instructions
5.1 Chassis
5.1.1 Covers
Tools Dimension
Torx T30

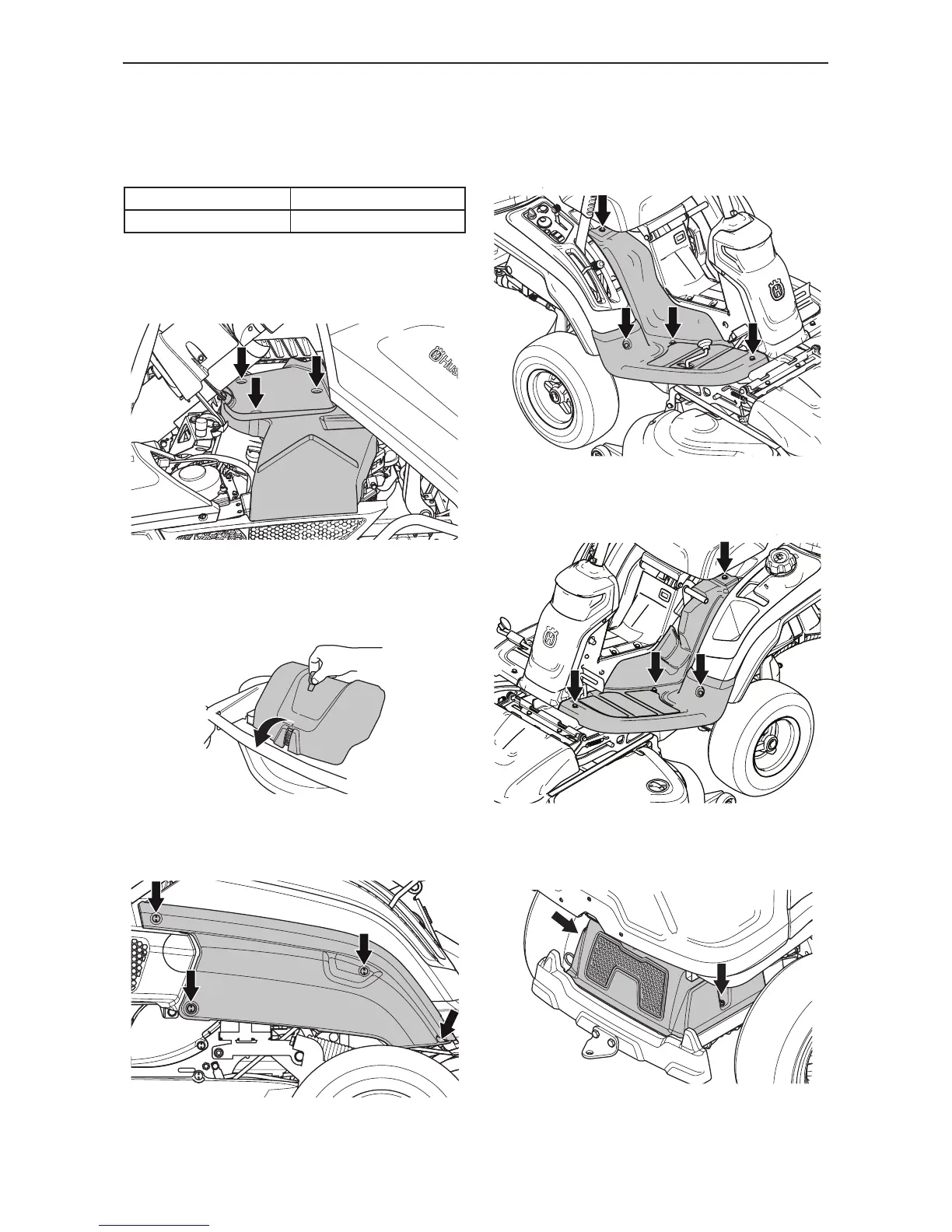

Engine cover
Tilt the collector to access the engine cover, loosen
the 3 screws and lift o the cover.
Front cover
Release the clip on the front cover with the tool
attached to the ignition key
Side cover
Loosen the 4 screws and lift o the cover.
Right fender
Unscrew the reverse pedal knob, loosen the 4 screws
and lift o the cover.
Left fender
Loosen the 4 screws and lift o the cover.
Transmission cover
Loosen the screw and lift o the cover
