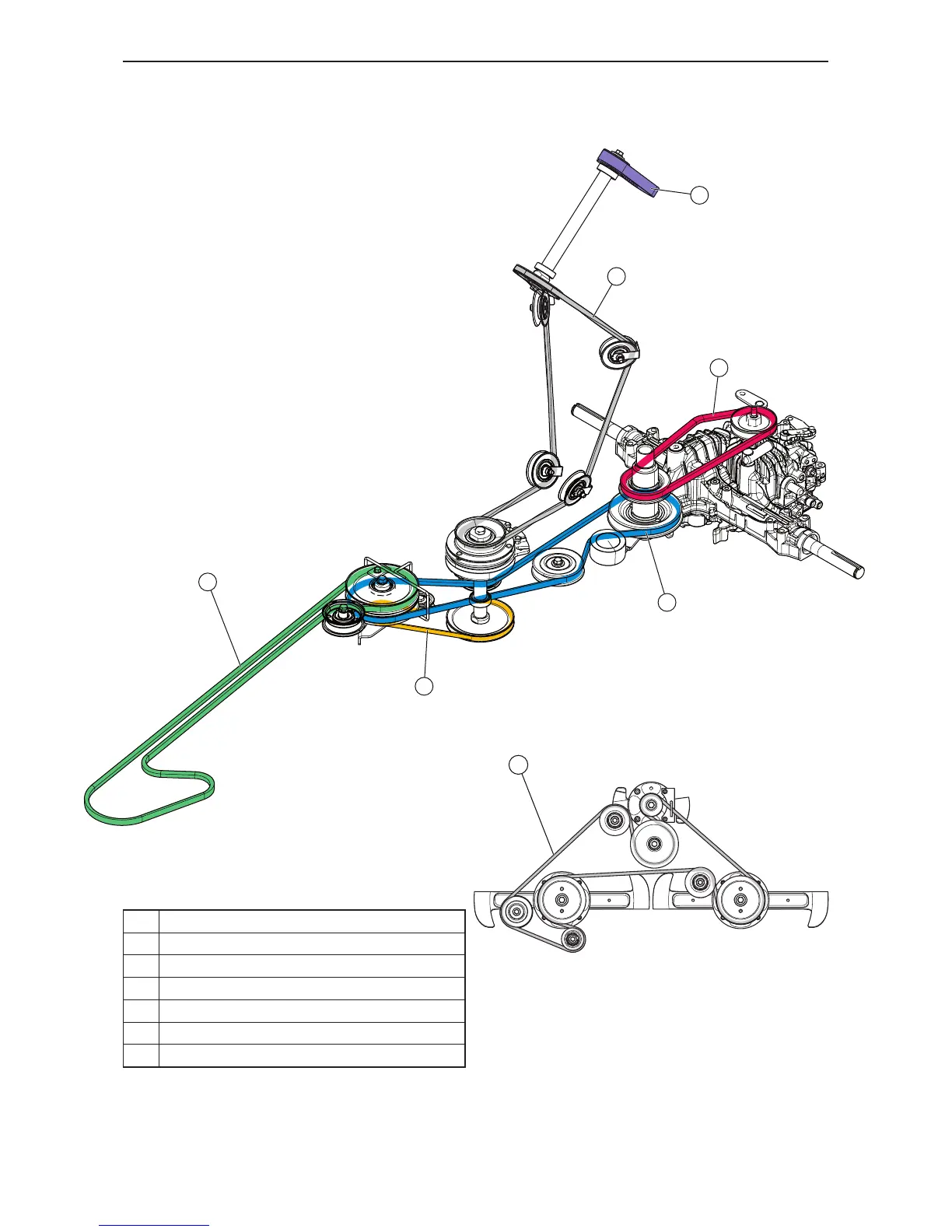

7.4 Belt position diagram
Appendices and schedules
4
1
2
5
3
6
7
1 Engine pulley to transmission pulley
2 Engine pulley to intermediate pulley
3 Intermediate pulley to cutting deck
4 Cutting deck
5 Intermediate pulley to electric clutch
6 Electric clutch to auger
7 Timing belt on auger
