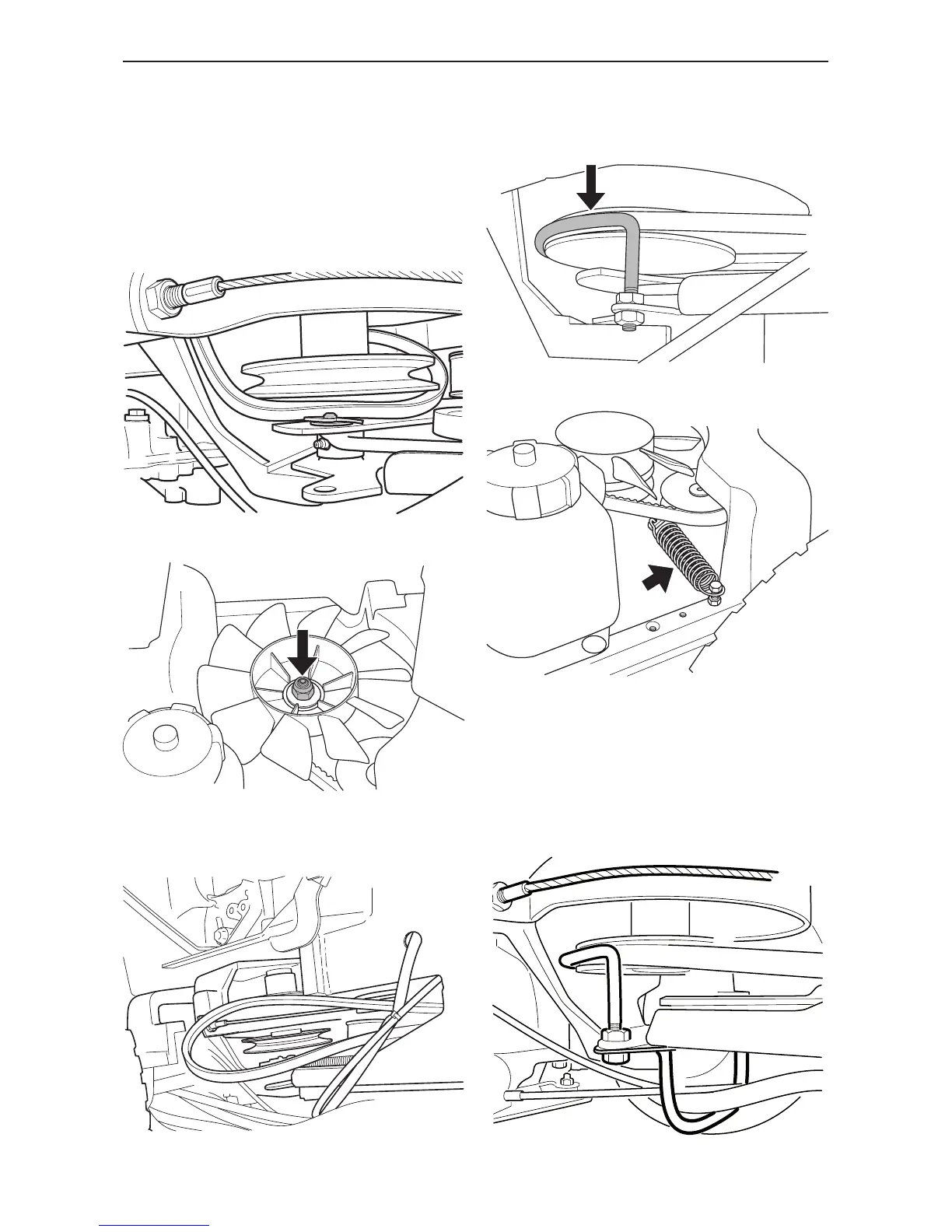

Assembly
1. Pull the belt through the opening under the pivot
beraring and on the outside past the tensioners
disk.
2. Pull the belt under the engine belt pulley and t it
on the engine belt pulley.
3. Fit the belt on the hydrostatic transmission pulley.
4. Attach the cooling fan.
5. Check that the centre belt is tted correctly on its
front pulley and t the centre belt on the engine
pulley.
5.8.2 Replacing the centre belt.
1. Remove the hose holder in the middle and the
rear belt guide for the centre belt.
6. Fit the hose holder in the middle and the belt
guide for the centre belt.
7. Attach the spring (A).
