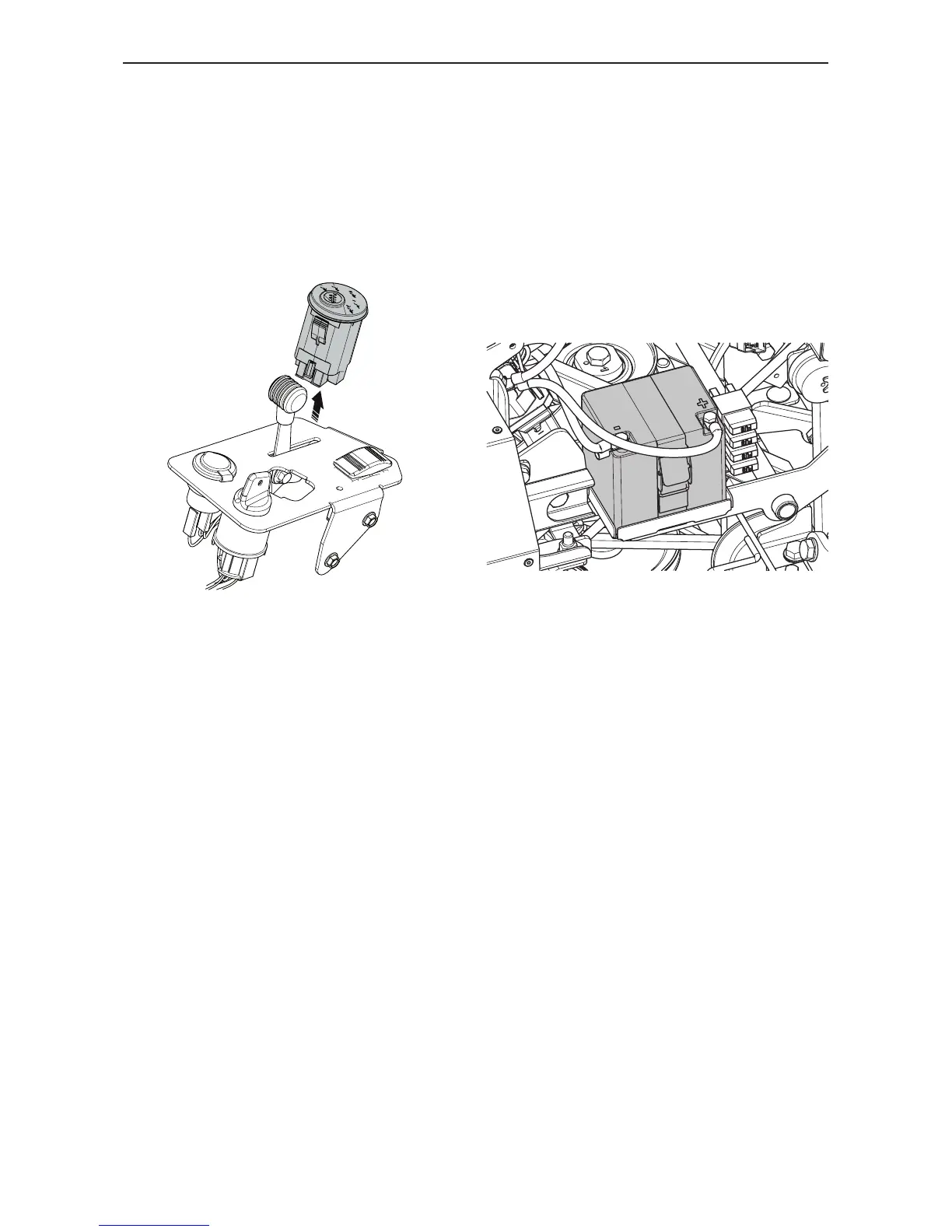

5.3.2 Auger control switch
Dismantling
1. Remove the right side cover, see “5.1.1 Covers”
on page 18.
2. Disconnect the cable from the auger control
switch and release the switch up through the
panel.
Electrical system
5.3.3 Battery
Dismantling
1. Tilt the collector.
2. Loosen the battery fastening strap.
3. Remove battery cable connections.
a. Always dismantle the NEGATIVE terminal
rst.
b. Then dismantle the POSITIVE terminal.
4. Remove the battery.
Assembly
1. Assemble in opposite sequence.
2. Place the battery in the battery compartment.
3. Assemble the battery cable connections.
a. Always assemble the POSITIVE terminal
rst. The tourqe is 4 Nm.
b. Then assemble the NEGATIVE terminal.
The tourqe is 4 Nm.
4. Secure the battery with the retaining strap.
5. Close the engine cover.
