5.3 Electrical system
17
19
18
1
16
15
14
13
3
2
12
11
10
4
5
6
8
9
7

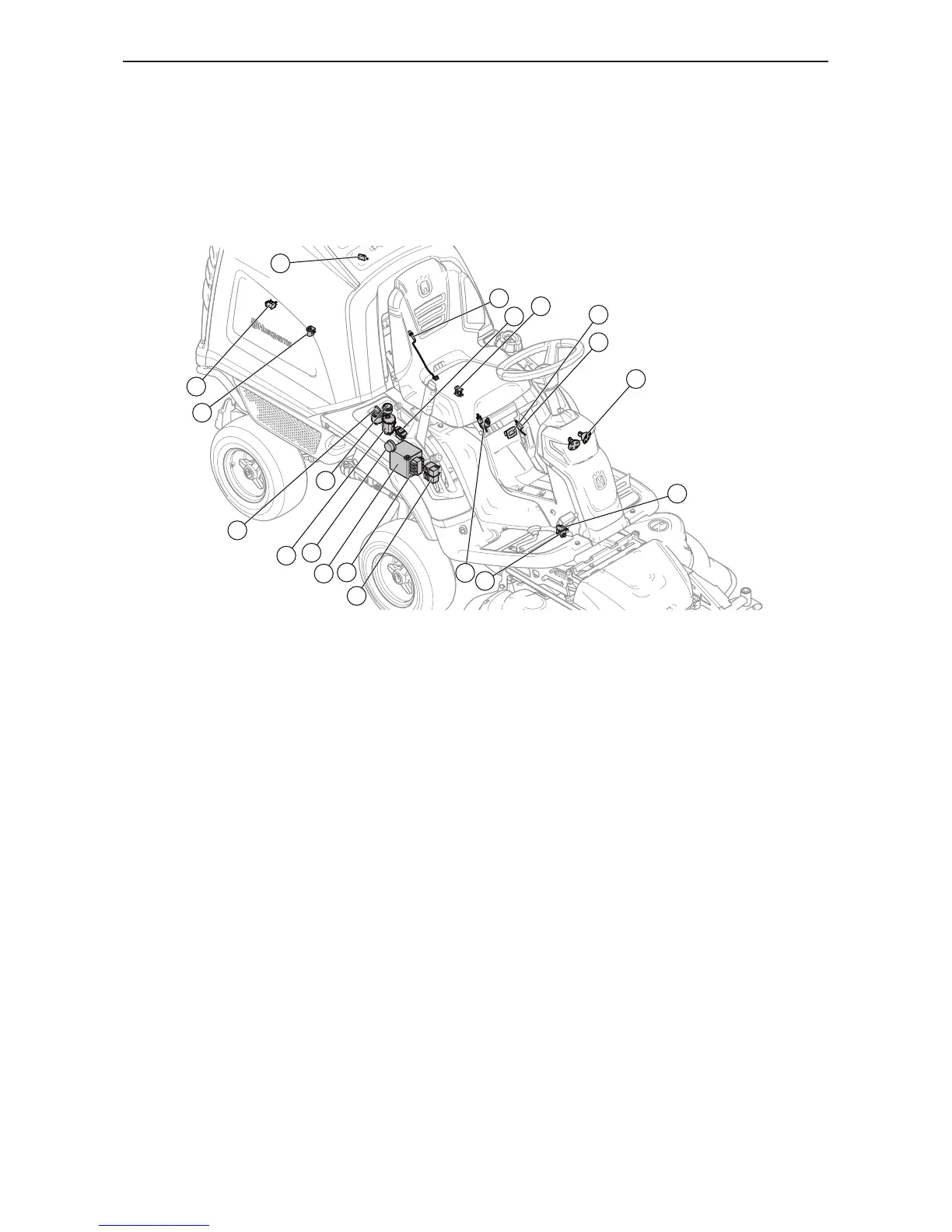

1. Auger rotation sensor
2. Switch for tilting the collector
3. Seat safety switch
4. Hour meter
5. Auger service position lever switch
6. Head lights
7. Microswitch, parking brake
8. Sensor for cutting deck in place
9. Lift lever safety switch
10. Relay
5.3.1 Electrical system overview
NOTE: There is more detailed information concerning the electrical system on the Husqvarna web-
site.
Electrical system
11. Fuses
12. Battery
13. Buzzer
14. Auger control switch with LED indicators
15. Power outlet (12 V)
16. Ignition lock
17. Collector position sensor
18. Switch for collector hatch
19. Switch for collector full
