Dismantling

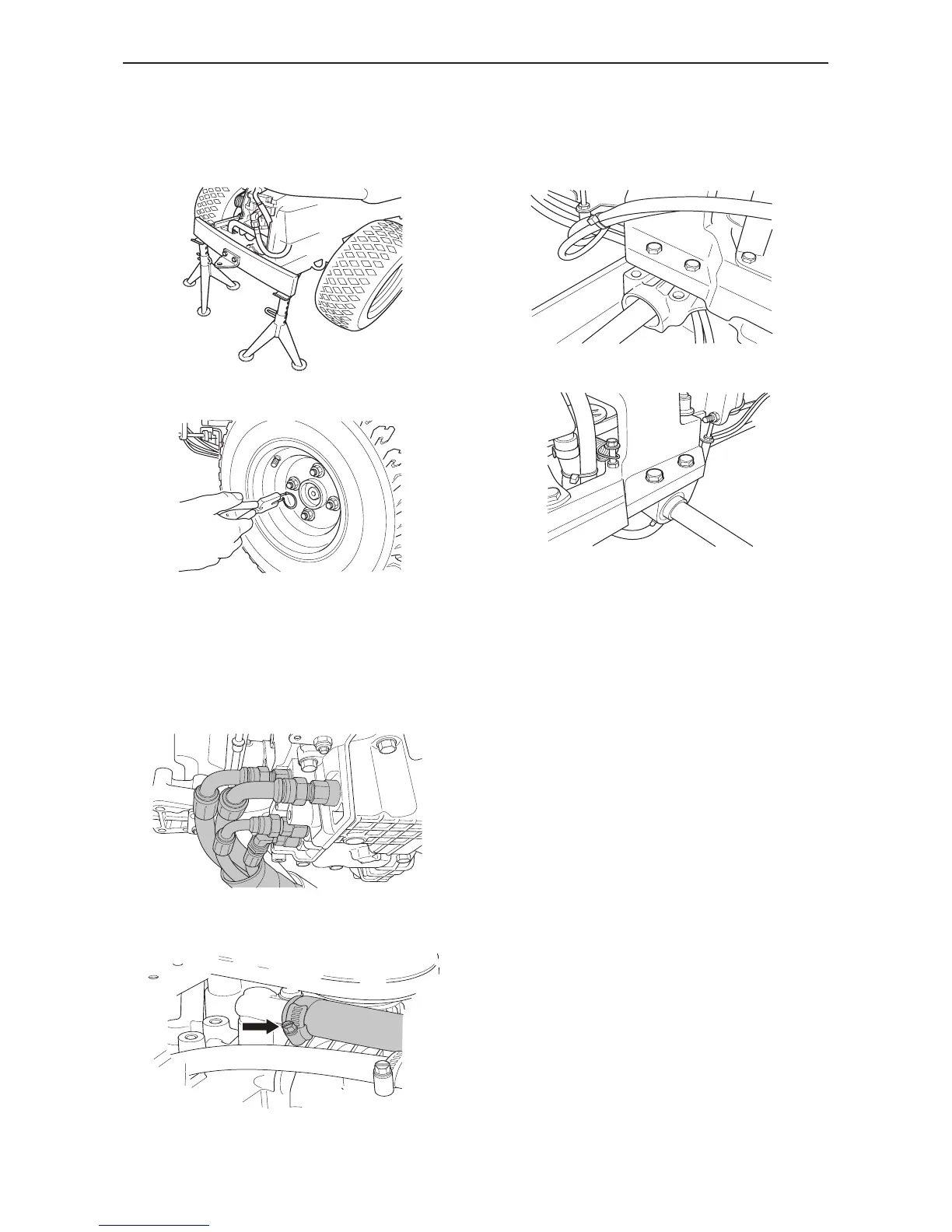

1. Raise the product and support it under the frame.
Refer to the illustration for the permitted area.
2. Dismantle the rear wheels.
3. Drain the oil. See “5.2.3 Transmission oil
change” on page 28.
Release the hydraulic hoses from the underside
of the rear transmission. Attach the protective
plugs. The hydraulic hoses can be mixed up.
Mark the hydraulic hoses so that they are
reconnected on the correct connections.
4. Release the hydraulic pipe from the top of the
rear transmission. Attach the protective plug.
5. Remove the 4 screws which hold the rear
transmission and lower it.
Left side
Right side.
Hydraulic system
Assembly
1. Assmeble the transmission in the opposite
sequence to dismantling. The bearing on the right
side is turned so the grease nipple points
rearwards. Tighten the right side bearing.
2. The stop screws for the bearing ont the right side
are tightened after the 4 screws that hold the
transmission have been tightened.
3. Grease the axles for protection against corrosion
before the wheels are tted.
4. Fill with oil and vent the entire hydraulic system,
see “5.6 Hydraulic system” on page 42.
5. Examine and adjust the speed coordination
between the front and rear wheels, see “5.2.10
Wheel speed” on page 31.
