TroubleshooTing and sysTem TesTs
5-10 powermax 65/85 Service Manual

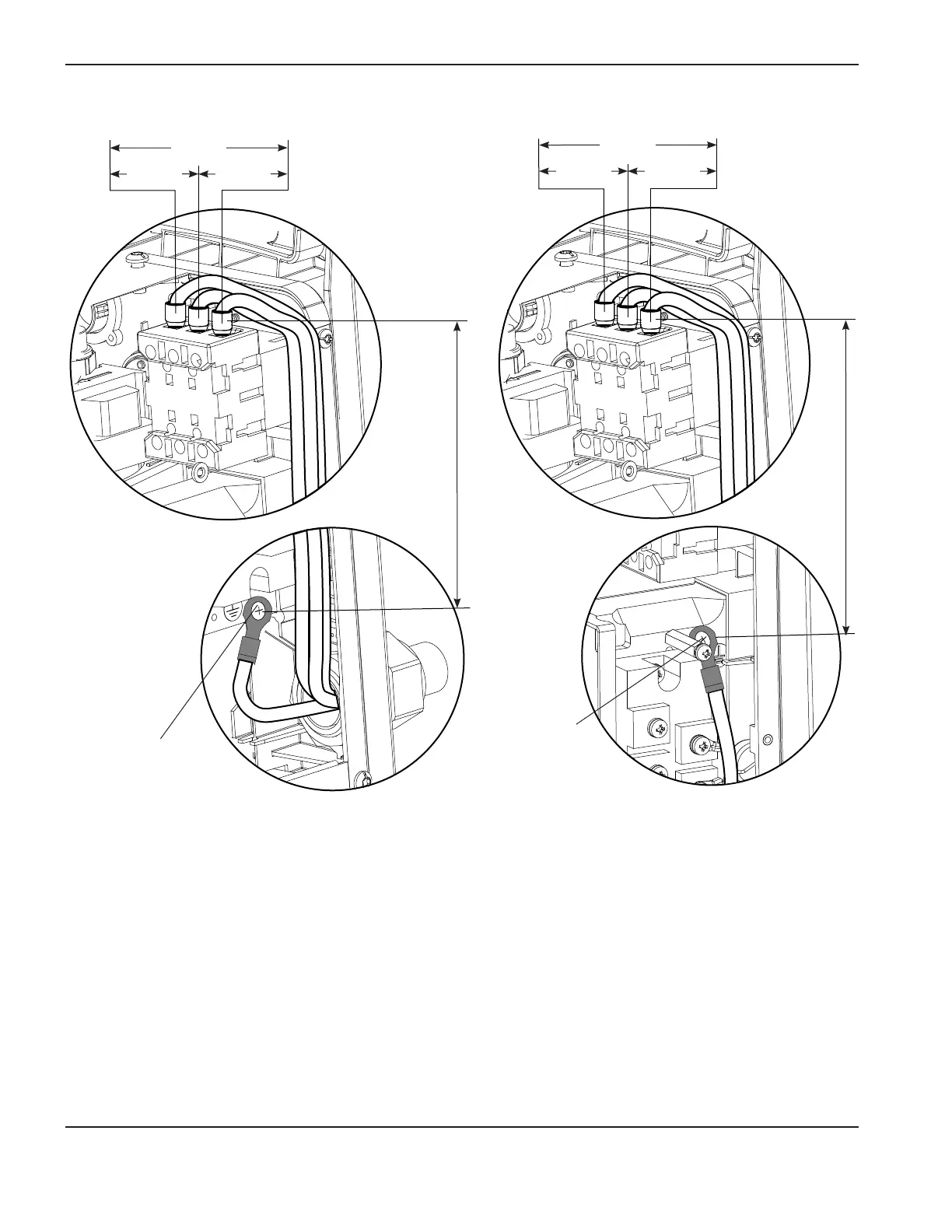

500kΩ
200–600 V CSA
500kΩ 500kΩ
>20 MΩ
Ground is at bottom
of heat sink
Ground is
at top of
heat sink
350kΩ
400 V CE
350kΩ 350kΩ
>20 MΩ
