110 Powermax30 XP Service Manual 808150 Revision 0
6 Power Supply Component Replacement
3. Remove the connectors at J4, J5, and J6 on the component side of the power board. (See Figure 47.)

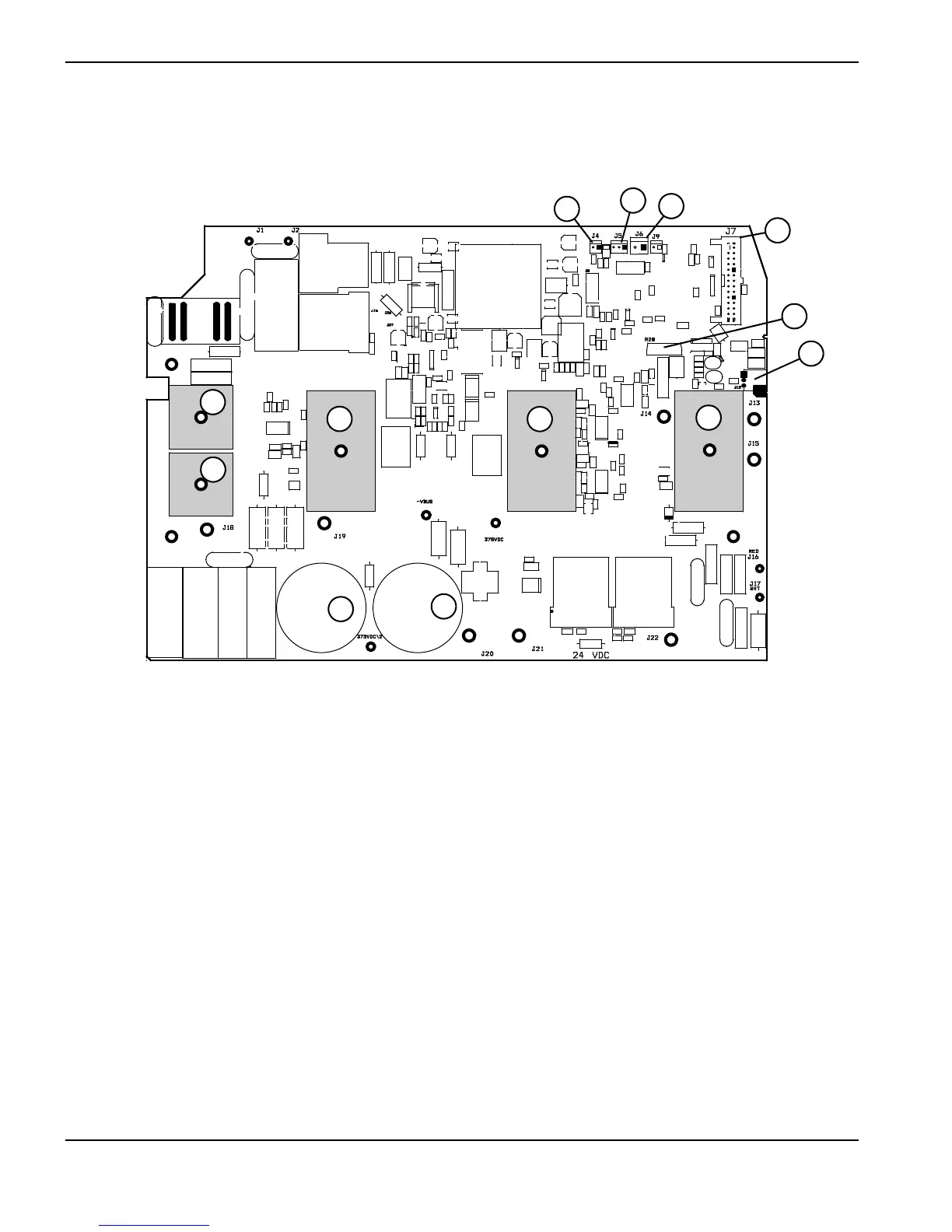

Figure 47
1
2
4
7
8
9
1
3
3
3
2
5
6
1
Input diode bridges
2
Capacitors
3
IGBTs
4
Connector TORCH START (J12)
5
Snubber resistor
6
Ribbon cable connector (J7)
7
J6
8
J5
9
J4
