174 Powermax30 XP Service Manual 808150 Revision 0
7 – Torch Component Replacement

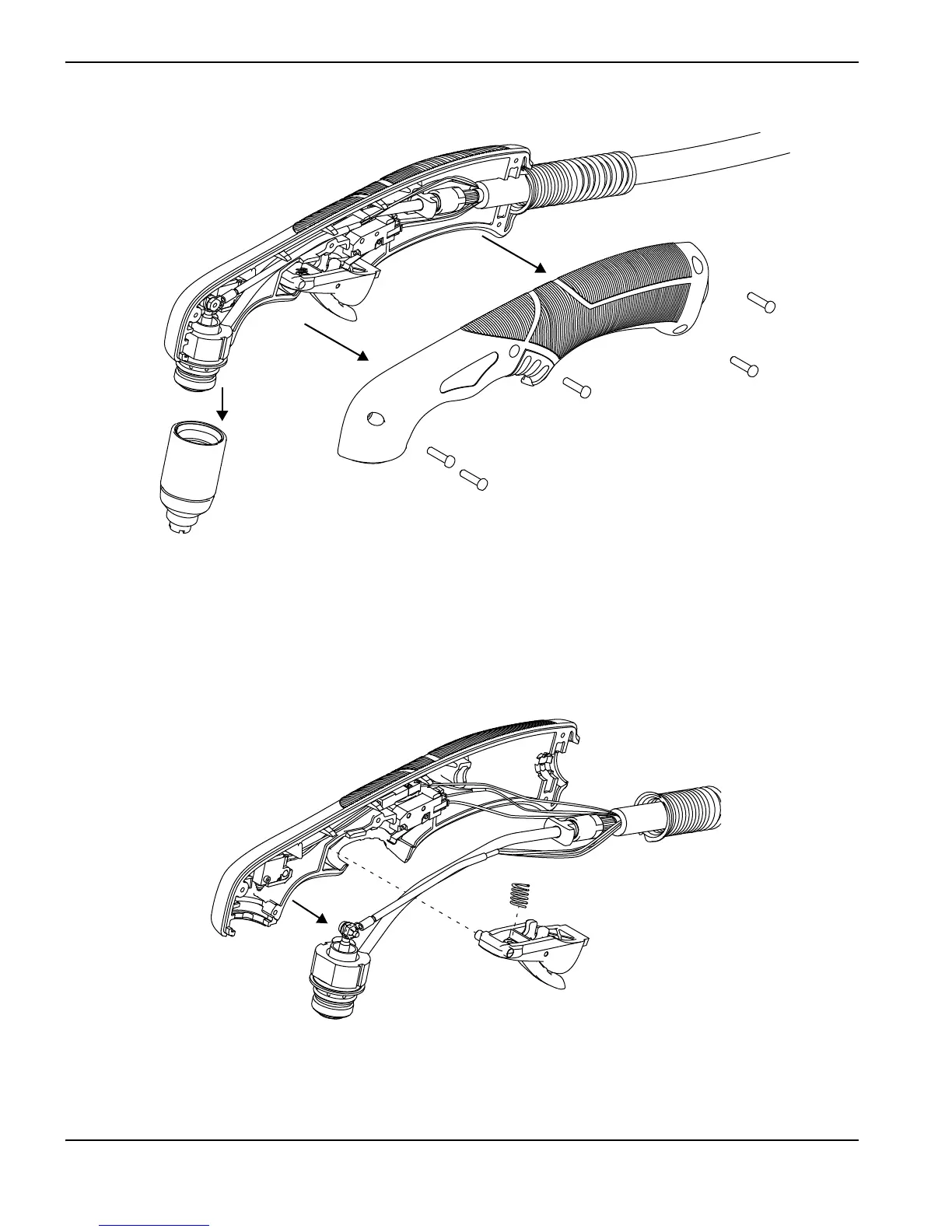

Figure 102
6. While holding the spring in place, slide the trigger and spring up and out of the handle. Set them aside.
7. The torch body fits snugly into the right side of the handle. While holding the torch body in place, gently press the
right side of the handle away from the torch body to remove it.
Figure 103
