Hypertherm Powermax30 XP Service Manual

Powermax30 XP Service Manual 808150 Revision 0 175
7 – Torch Component Replacement

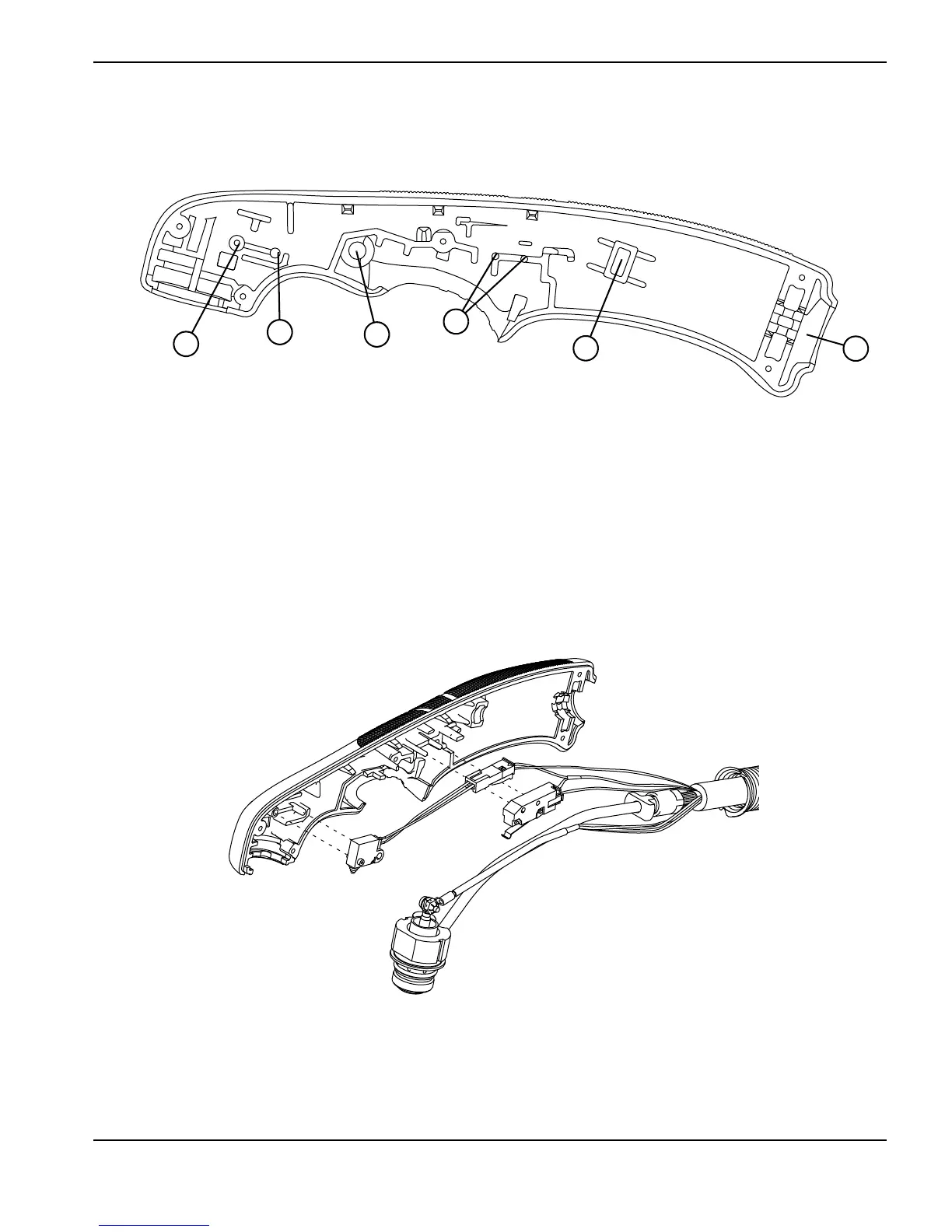

8. Slide the cap-sensor switch off its mounting post. (See Figure 105.)
Figure 104
9. Slide the start switch off the two mounting posts.
Figure 105
1
2
3
4
5
6
1
Cap-sensor switch’s post hole
2
Cap-sensor switch’s mounting post
3
Trigger’s pivot hole
4
Start switch’s mounting posts
5
Slot for the gas hose fitting’s flange
6
Strain relief slot
