6 – Power Supply Component Replacement
Table 1 – Single-phase CSA power cord wires

The power cord has a black wire and a white wire that connect to the power switch and
a green ground wire that connects to the heatsink.
3. Remove the screw that holds the ground wire to the heatsink. A notch in the power board provides access to the
screw. (See Figure 37.)

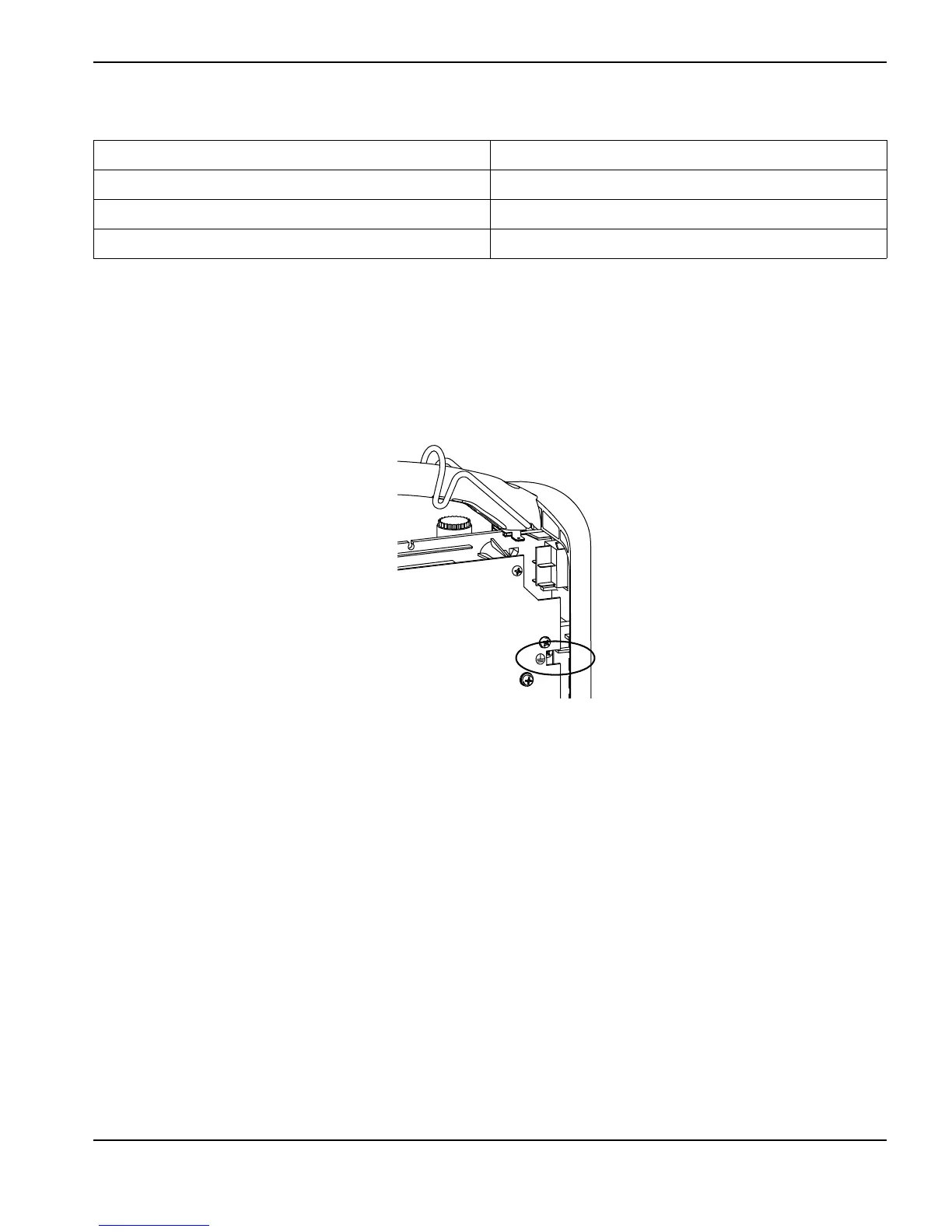

Figure 37
Designator Wire color
L (live) Black
N (neutral) White
PE (ground) Green
