Hyundai Elevator WBVF - Page 65

WBVF
A ． INSTALLATION MANUAL
FOR ELECTRICAL PARTS
Doc. No
Ver.
11.0
Date
2019-04-02
Page
65 / 98

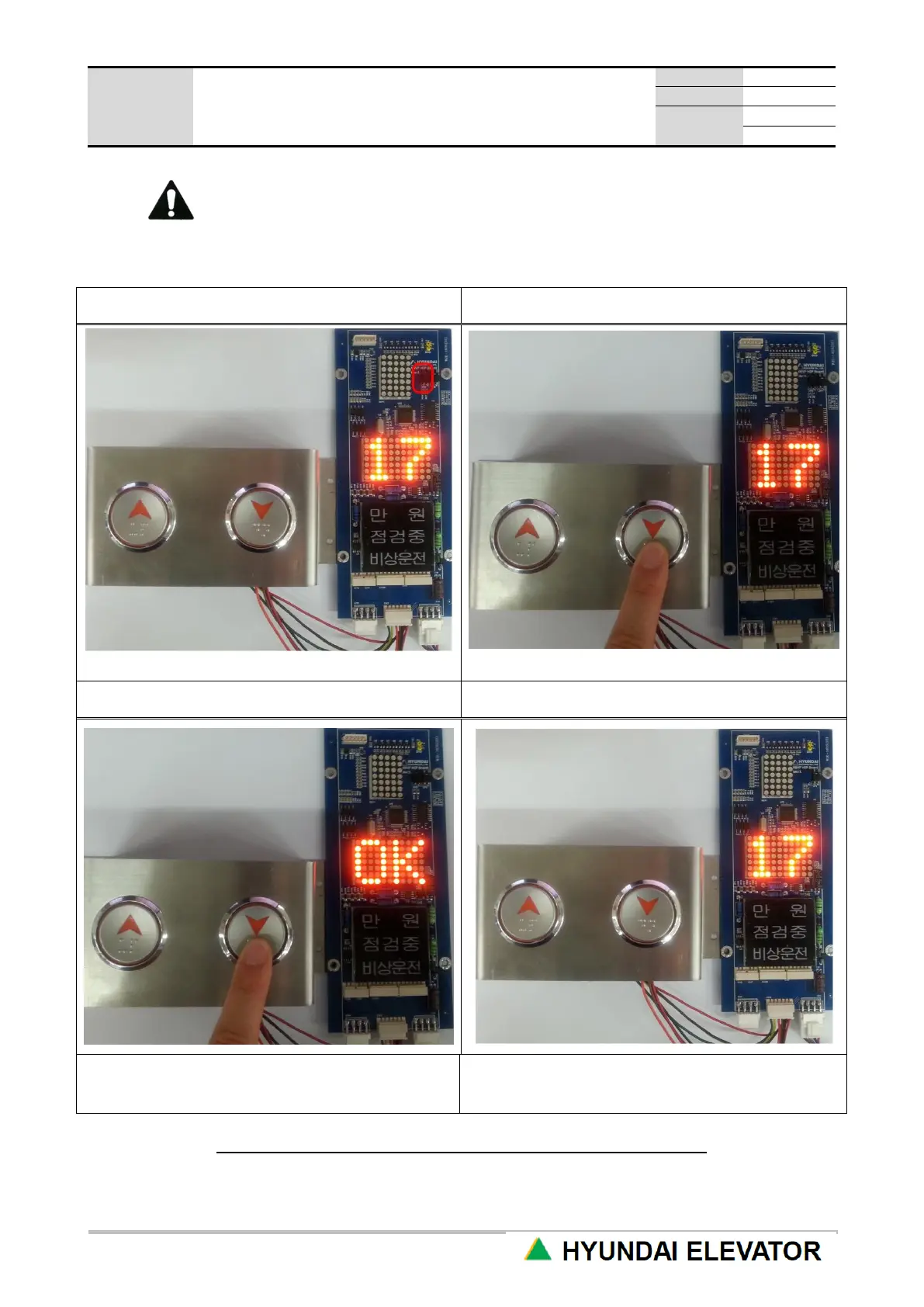

Refer to the following Step included in the picture for better understanding!
Example of floor input) If you want to 24th floor ID to HIP
Step 3
Step 4, 5
JUMP FL_SET
MAKE 17FL BY USING UP or DOWN BUTTON
Step 6
Step 7
Push the button during 5sec then check 『OK』
sign
Release FL_SET jumper
This work must be carried out when JUMPER is set on FL_SET.
