WBVF
A ． INSTALLATION MANUAL
FOR ELECTRICAL PARTS
Doc. No
Ver.
11.0
Date
2019-04-02
Page
78 / 98

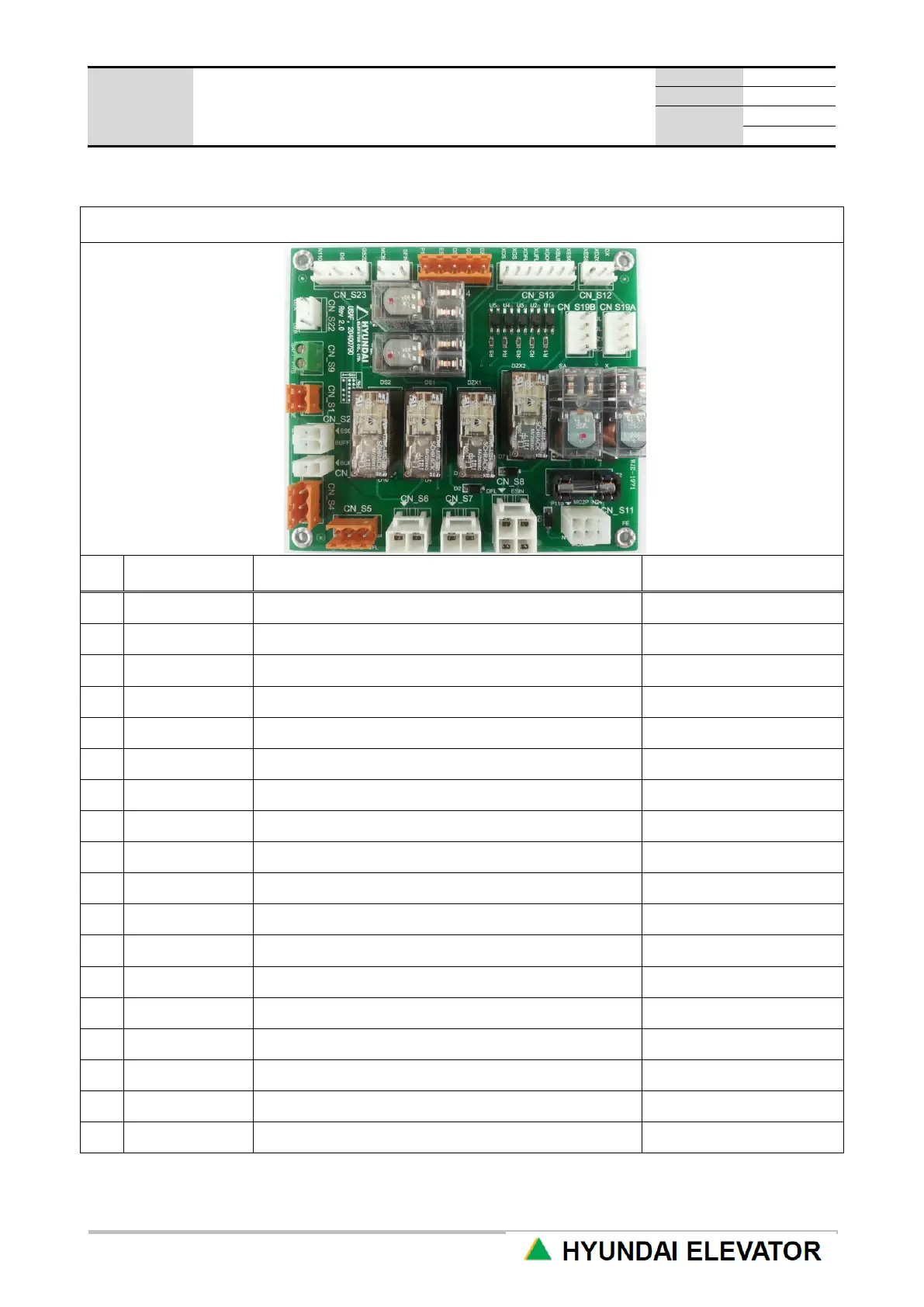

1.3 USAF Board
USAF Board
No.
Name
Description
Remark
1
CN_S1
Control Panel emergency stop
2
CN_S2
Feet safety line
Site wiring(feet)
3
CN_S3
Governor (for terminal block wiring)
4
CN_S4
Upper part final limit
Site wiring(hoist way)
5
CN_S5
Lower part final limit
Site wiring(hoist way)
6
CN_S6
Boarding floor door
Site wiring(interlock)
7
CN_S7
Boarding floor door
Site wiring(interlock)
8
CN_S8
Car safety line
Site wiring(T-CABLE)
9
CN_S9
For electrical emergency operation jumper
10
CN_S11
For SAF board power
11
CN_S12
For safety relay fuse inspection
12
CN_S13
For safety line monitoring
13
CN_S14
MRL external input/output signal connection
14
CN_S19A
Installed vane signal
Site wiring(T-CABLE)
15
CN_S19B
Installed vane signal
16
CN_S22
For Door zone sensor signal
UCMP B‟d connection
17
CN_S23
For car door & landing door s/w signal
UCMP B‟d connection
18
CN_S24
UCMP safety line
UCMP B‟d connection
