Hyundai Elevator WBVF - Page 79

WBVF
A ． INSTALLATION MANUAL
FOR ELECTRICAL PARTS
Doc. No
Ver.
11.0
Date
2019-04-02
Page
79 / 98

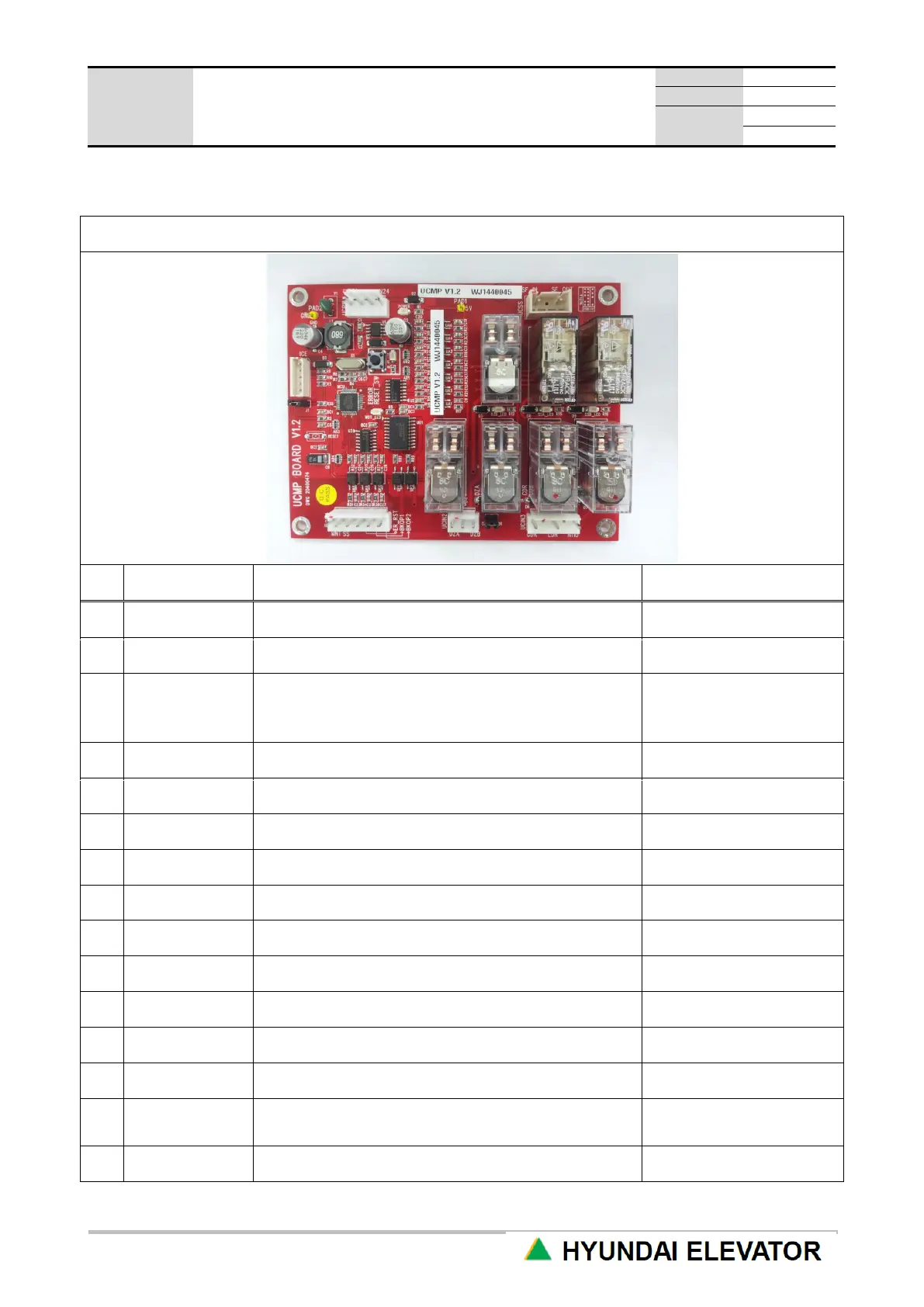

1.4 UCMP Board
UCMP Board
No.
Name
Description
Remark
1
UCPW
UCMP Board power
DC 24V
2
ICE
Program downloading connector
3
UCIN1
MNT, SS, RST Signal
MNT : Monitoring Relay
SS : SSA, SSB Status
ER_RST : Clear error
4
UCIN2
For Door zone sensor signal
5
UCIN3
Door switch signal
Car door, landing door
6
UCSS
For safety line
7
MNT
Monitoring relay
8
DZA
Door zone signal relay 1
/w DZA LED
9
DZB
Door zone signal relay 2
/w DZB LED
10
CDR
Car door signal relay
/W CDR LED
11
LDR
Landing door signal relay
/W LDR LED
12
SSA
Safety relay 1
13
SSB
Safety relay 2
14
ER_RESET
S/W
Clear UCM error
/w ER_LED
15
WDT LED
WATCH DOG LED
