Hyundai Elevator WBVF - Page 92

WBVF
A ． INSTALLATION MANUAL
FOR ELECTRICAL PARTS
Doc. No
Ver.
11.0
Date
2019-04-02
Page
92 / 98

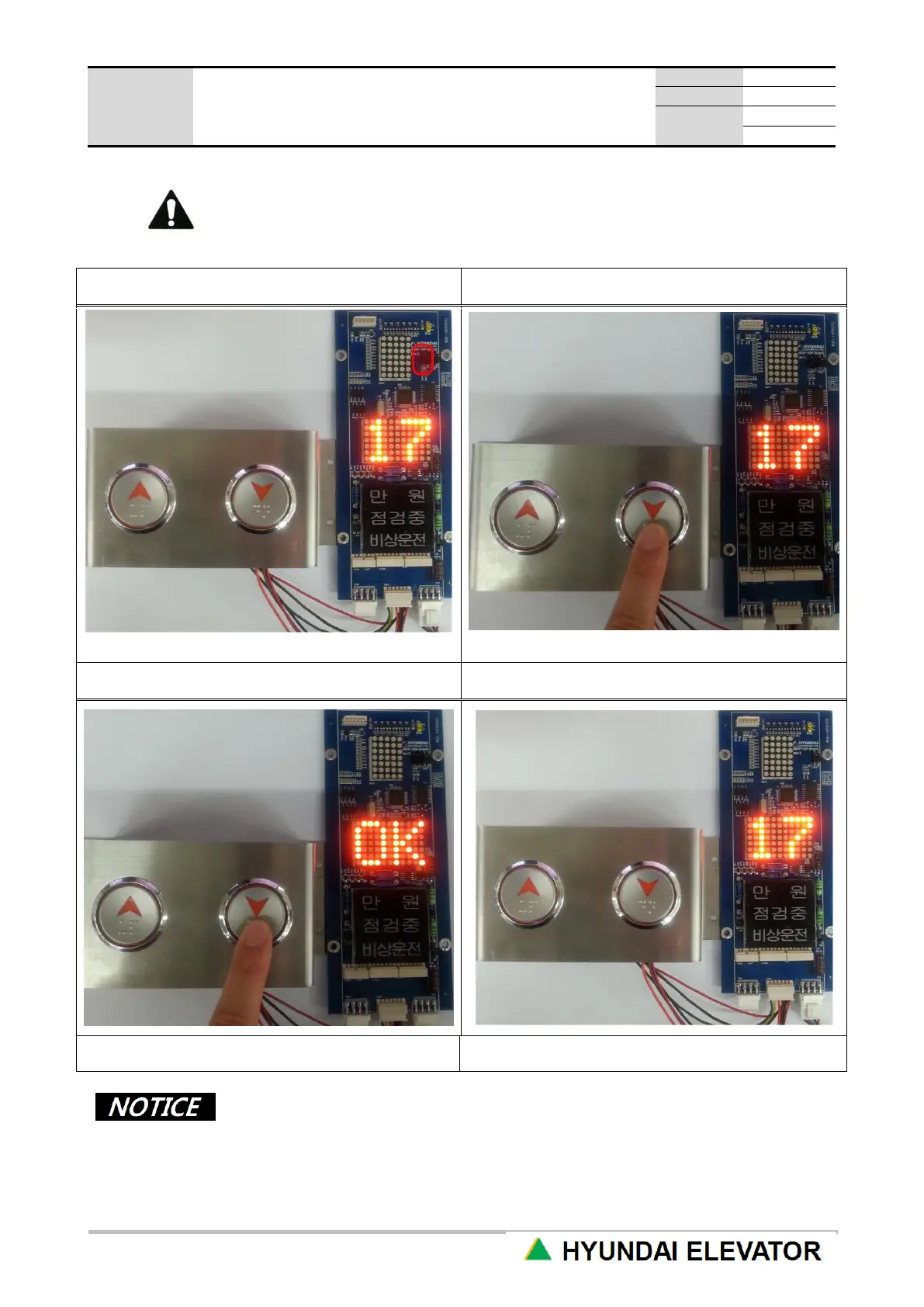

Refer to the following order included in the picture for better understanding!
Example of Floor input) When you want to input『24』floor ID to HIP
Order 3
Order 4,5
JUMP FL_SET
MAKE 17FL BY USING UP or DOWN BUTTON
Order 6
Order 7
Push the button during 5sec then check『OK』sign
Release FL_SET jumper
This work must be performed while JUMPER is connected to『FL_SET』.
(Same for HPI / CPI)
